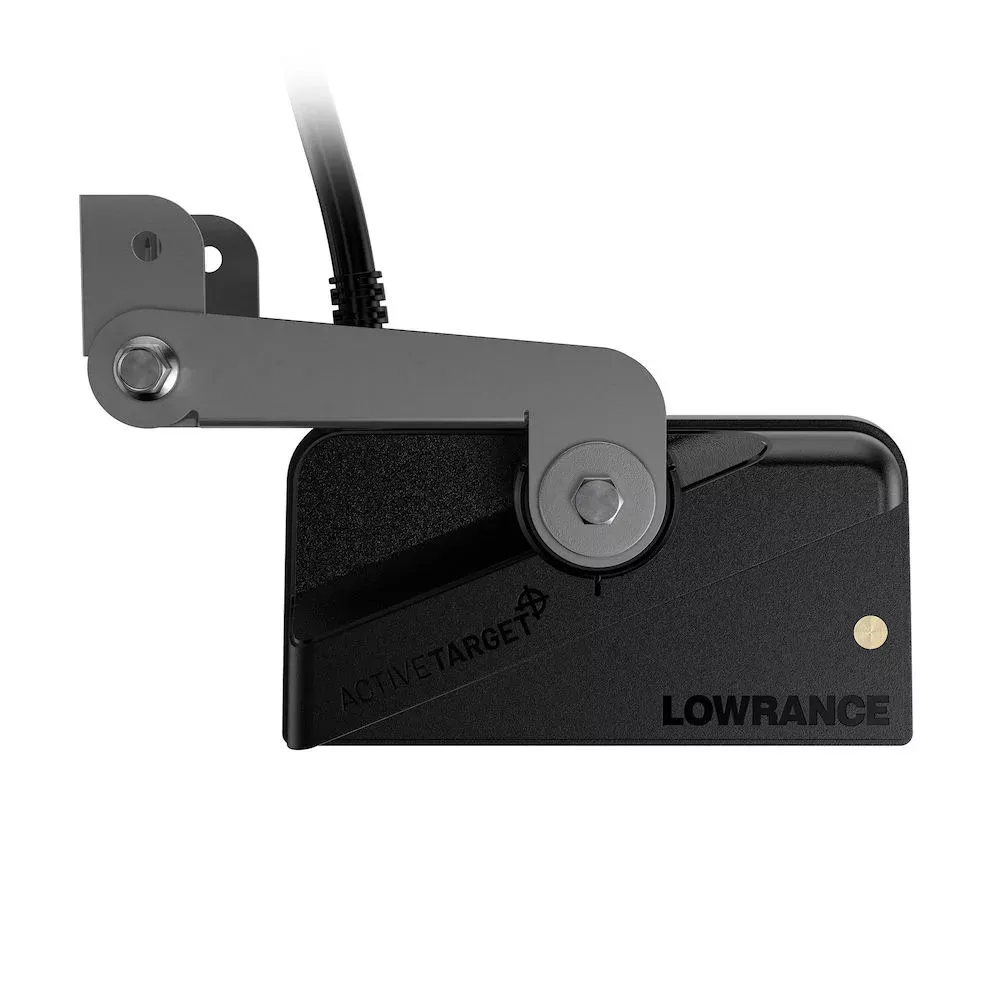

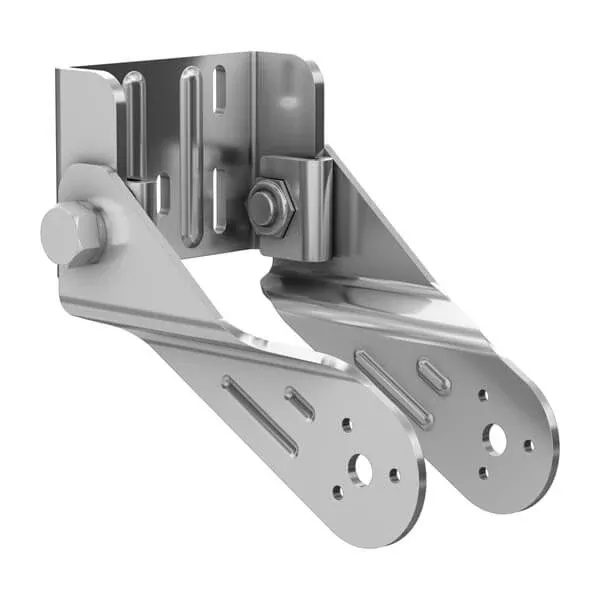

ActiveTarget Transom Mount Kit (Not included in the ActiveTarget Kit).
Especifications:
Connectivity
| Ethernet | Yes: 1 – 100 Mbit Ethernet Port |
|---|
Electrical
| Power Consumption, max. | 1.5A @ 13.8VDC |
|---|---|
| Power Consumption, typical | 1.5A @ 13.8VDC |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 10.8 VDC – 31.2 VDC |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
Environment
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
|---|---|
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -22°F To 158°F (-30°C to 70°C ) |
| Waterproof rating | IP67 |
Physical
| Dimensions (W x H x D) | Module: 8.63″ (219.3mm) X 7.56″ (192.1mm) X 2.86″ (72.9mm) Transducer: 5.90″ (149.8mm) X 3.24″ (82.4mm) X 2.28″ (58.0mm) |
|---|---|
| Mounting Type | Module: Surface Mount Transducer: Bracket Mount |
| Weight | Module: 4.12 lbs (1.86 kg) Transducer: 2.67 lbs (1.21 kg) |
Radar
| Frequencies | 550kHz – 1100kHz |
|---|---|
| Max Depth | 200′ (60.96m) |
Other
| Warranty Period | 1 Year + 4 additional years of upgrade options Totaling 5 years |
|---|---|
| Interface | Ethernet to: HDS Pro HDS Live HDS Carbon Elite FS |
