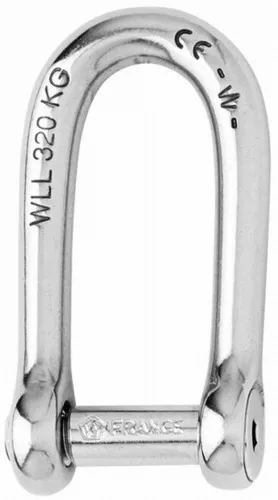

Wichard Self-Locking Allen Head Pin Long Shackle

Wichard Self-Locking Allen Head Pin Long Shackle

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loose due to vibrations
• Outstanding working and breaking loads

Applications

• Ideal to link chain and anchor
• On the halyard, avoids to damage the sails
• To be used when the clutter is reduced

Caption

• Working load (WL) : for nautical applications
• Working Load Limit (WLL): for industrial applications only.
• The safety factor is 5 times the breaking load.
• WLL = Breaking load / 5
