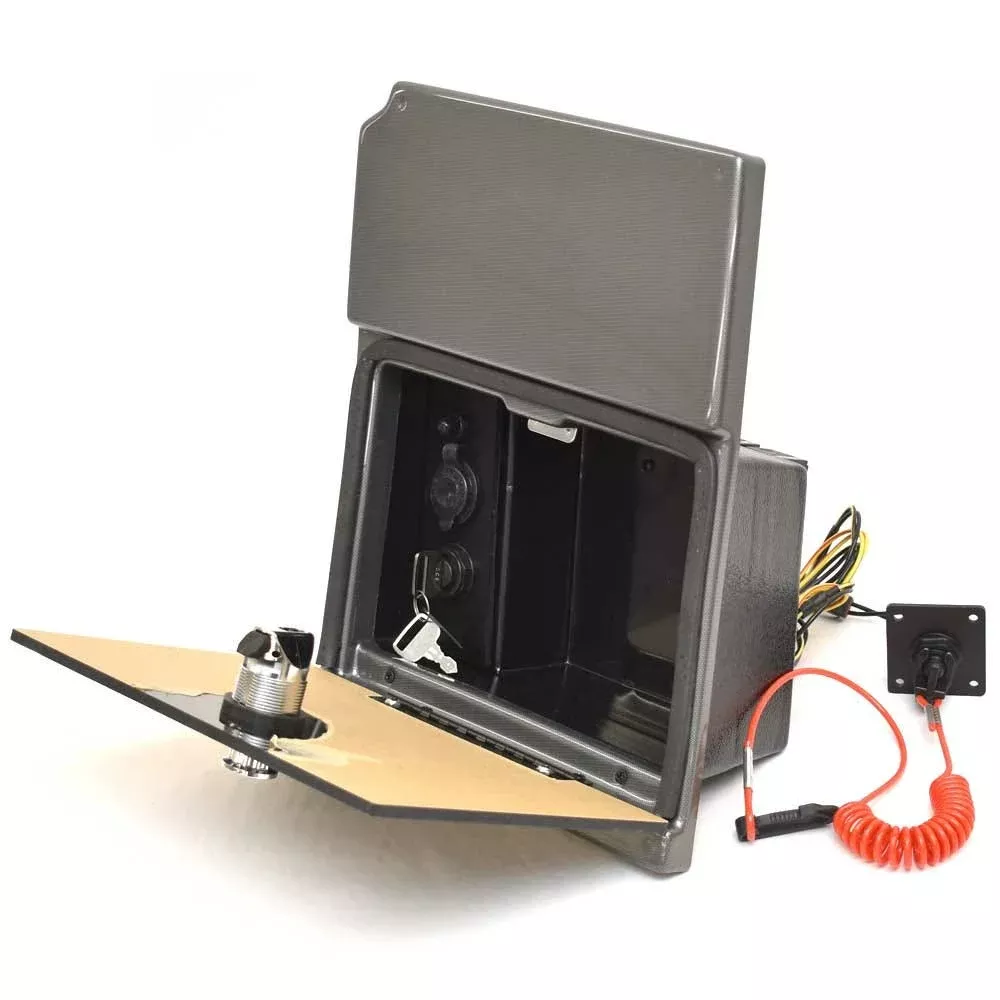

Boat part number 1107117 is a new ignition box panel, manufacturer unavailable part number TR131V12392 . Commonly used on Triton boats, but may be used on other boats.This ignition box panel is constructed out of black and carbon fiber patterned plastic, and measures approximately 9 1/2″ L x 13″ H x 6″ D overall. Requires an approximate 9″ L x 6 1/4″ H x 5″ D cutout. Box opens with an approximate 8 1/4″ L x 5 3/4″ W x 4″ D opening. Uses (2) male bullet, (1) 4-pin Deutsch, and (1) 6-pin Deutsch connections. Features a kill switch mounted to a 2″ x 2″ panel with (4) 3/16″ Dia. holes set to each corner. Hosts (1) Push-to-reset breaker rated for 15 Amps at 125/250 AC or 32 Volts DC, (1) 12 Volt Receptacle, and (1) OFF/ON/START Inboard Ignition Switch.Hatch opens with a push-to-turn flush latch.Manufacturer tag reads as the following:
- 21HP BMC IGN BOX
(2) keys included.Specifications:
- Boat Manufacturer: Triton Boats
- Part Manufacturer: Unavailable
- Part Number: TR131V12392
- Material: Plastic
- Color: Black (Ignition Box) | Carbon Fiber (Panel)
- Electrical: 15 Amps at 125/250 AC or 32 Volts DC
- Overall Dimensions: 9 1/2″ L x 13″ H x 6″ D
- Hatch Dimensions: 8 1/4″ L x 5 3/4″ W x 4″ D
- Cutout: 9″ L x 6 1/4″ H x 5″ D
- Mounts: (4) 3/16″ Dia. holes set to each corner (Kill Switch Panel)
- Connections: (2) Male Bullet | (1) 4-Pin Deutsch | (1) 6-pin Deutsch
