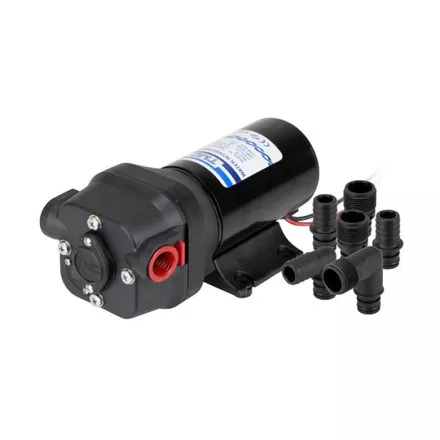

TMC Raw Water Inlet Rinse Pump
- 4-chamber diaphragm design.
- Intake raw sea, river or lake water for flushing.
- Built-in check valve prevents backflow.
- Snap-in port fittings 3/4” (19mm) included.
- Built-in thermal overload protection self-priming and can be run dry.
- CE Certified, Ignition Protected ISO 8846.
- ISO-9001 and ISO-14001 manufacturing standards.
| Part Number | Voltage | Fuse Size | Pressure Cut In | Pressure Cut Out | Snap-In Ports Dia. | Amps | L x W x H |
|---|---|---|---|---|---|---|---|
| SAW-23806 | 12V | 10A | 20PSI | 40PSI | 13mm | 6A | 218mm x 106mm x 97.4mm |
| SAW-23807 | 24V | 5A | 20PSI | 40PSI | 13mm | 3A | 218mm x 106mm x 97.4mm |
