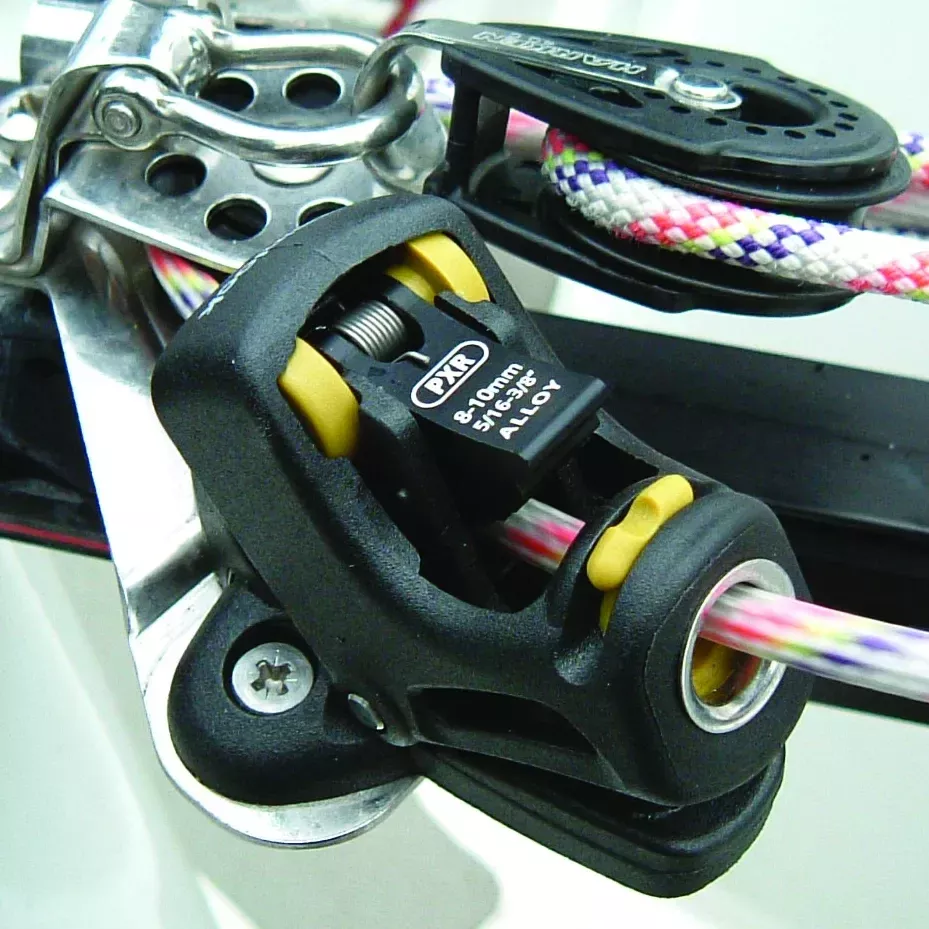

Compact roller action cam cleat for easy release of high performance control lines.
Details:
- Fast precise control for hand tensioned lines
- Roller action ensures easy release under high load
- Hard anodised alloy cam and base
- Ideal for high performance lines
- Micro size for small diameters
- Three stage release control switch
- Ideal for single line spinnaker hoist systems
- Resists accidental re-cleating
Especifications:
PXR0206Lines: 2mm – 6mm (3/32″ – 1/4″)
Loads up to 140kg (308lbs)PXR0810Lines: 8mm – 10mm (5/16″ – 3/8″)
Loads up to 200kg (440lbs)Retro Fit ‘T’ – Matched hole centres allow direct replacement of traditional cam cleats with PXRPXR0206/T – 27mm (1 1/16”) hole centres – for upgrading dinghy control line cam cleatsPXR0810/T – 38mm (1 1/2”) hole centres – for upgrading main sheet swivel cleats and traveller systems on dinghies, keelboats and yachts, and upgrading cam cleats on downhauls, vang and backstay controlsDeck Swivel ‘SW’PXR0206/SW for single cleat control of jib sheets and dinghy vangs. Preferred by dinghy builders for single line spinnaker hoist systems PXR0810/SW for bigger boat swivel cam cleat control applicationsSame footprint as traditional swivel cam cleatsVertical Pivot ‘VP’ (2-6mm version only)Pivoting sheave and cleat with ultra compact designMount centrally for feeding control lines out to the sidesMount under boom for outhaul and gnav controlsMount at mast base for catamaran downhauls and vangsEasily detachedAccepts Harken sheave ref: H415
FAQs
The standard PXR0206 is supplied for mounting with two M4 fasteners, countersunk head as shown in the spec table.
The PXR0206 accepts lines 2–6 mm (3/32–1/4″) with a safe working load around 140 kg (308 lbs).
The PXR0810 is specified for lines around 6–10 mm (5/16–3/8″) with a safe working load of 200 kg (440 lbs).
PXR0206 SWL is 140 kg (break load 280 kg). PXR0810 SWL is 200 kg (break load 400 kg).
A VP option is available for the 2–6 mm PXR0206 only. It features a pivoting sheave/cleat and can be mounted centrally, under the boom or at the mast base for downhauls/vangs.
Yes. Retrofit ‘T’ versions match traditional hole centres for direct replacement: PXR0206/T uses 27 mm centres; PXR0810/T uses 38 mm centres.
Yes. PXR0206/SW is for single-cleat control of jib sheets and dinghy vangs; PXR0810/SW is for larger-boat swivel applications.
Yes. The centre-pivot (VP) accepts Harken sheave reference H415 as specified.
Contact the SailRACE team — as certified marine experts we’re happy to help with product selection, installation and after-sales servicing, before and after your purchase.
