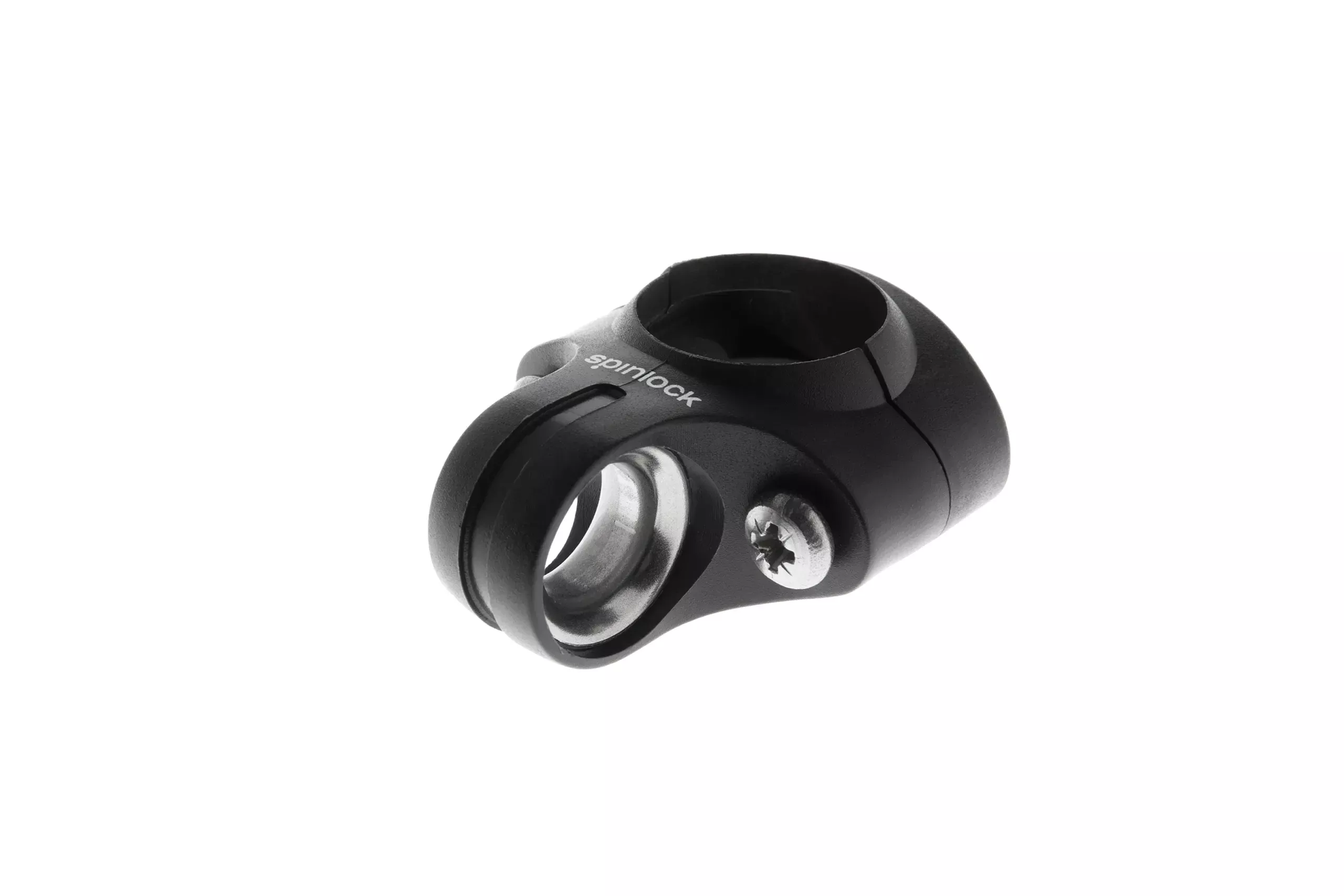

Compact stanchion lead system
Details:
- Compact furling line guide system
- Reduces line friction during furling
- Fairlead model WL/1 straightline guide for intermediate stanchions
- Sheave model WL/2 for line entry and exit stanchions with unique tracker-ball angle adjuster for perfect sheave allignment
- Complete with fastenings – easy to fit
Especifications:
Line DiameterWL/1 Up to 12mm (1/2″)
WL/2 Up to 12mm (1/2″)SWL (Safe Working Load) at max line diameterWL/1 – 300kg (660lbs)
WL/2 – 300kg (660lbs)
Weights y fasteners:
WeightsWL/1 – 40g (1.4oz)
WL/2 – 70g (2.5oz)FastenersIntegral, to fit stanchions 25mm (1″) diameter
FAQs
The unit is supplied complete with integral fastenings; no additional fasteners are listed as required.
WL/2 SWL at the maximum line diameter is 300kg (660lbs).
Yes — the product is supplied complete with fastenings and is described as easy to fit.
Yes — rated SWL 300kg at the maximum supported line diameter (12mm).
Integral fasteners are supplied to fit stanchions 25mm (1″) diameter.
WL/2 accepts line up to 12mm (1/2″).
WL/2 weight is 70g (2.5oz).
WL/2 is the sheave for line entry and exit stanchions; WL/1 is the straightline guide for intermediate stanchions.
