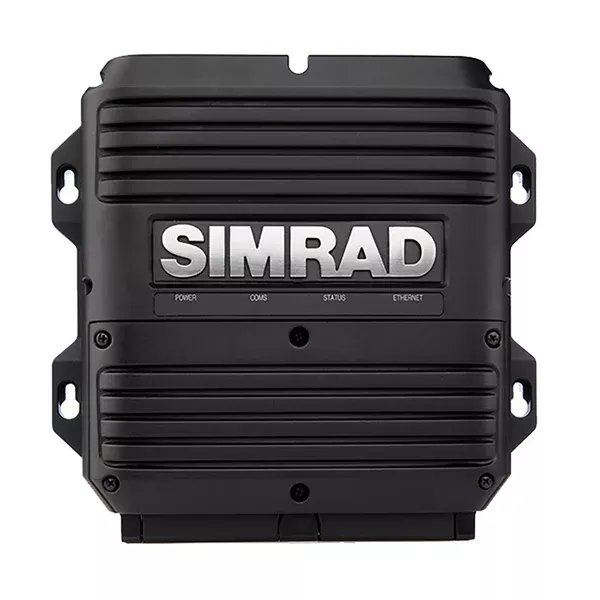

Simrad RI-12 Radar Interface Module [000-11467-001]

RI-12 Radar Interface Module

Features:

• Designed to accomodate either 12 or 24 colt systems and used for all Halo models
• Rugged, screw-in power connector block (DC cable not supplied)
• Supplies 36V DC to the pedestal in Tx mode – Status LED is Green when on – Red when not
• Easy to connect NMEA2000 Micro C
• Ethernet 10_100BaseT output with Ethernet LED (pigtail adapter supplied for internal RJ45 to external Navico Yellow)
• Easy removable access cover with captive screws
• Silicon Rubber Cable glands

Comes with:

• N2K-T-RD Network T-Connector – 000-0119-79
• ETHEXT-6YL 6ft Ethernet Cable- 000-0127-51
• N2KEXT-6RD – MICRO-C 6ft Cable, 1,8M – 000-0127-53
• CABLE RJ45M-5F Ethernet adapter Cable  – 000-11246-00
