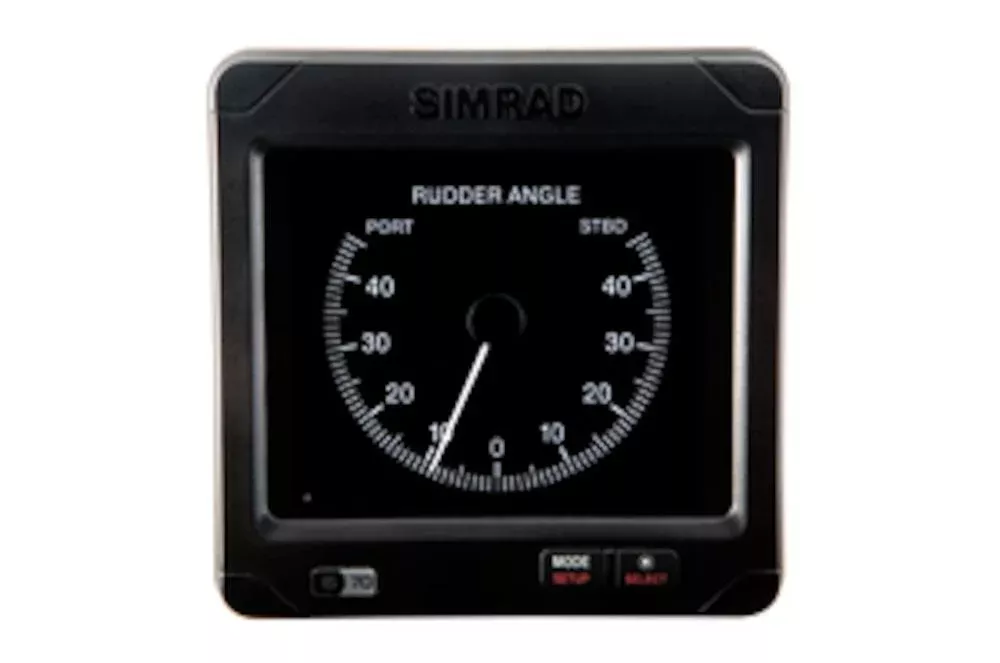

A standard-sized analog display showing the angle of the rudder relative to the centre line in degrees both to port and starboard displayed in clear white numbers on a black background.
The entire IS70 range is specifically designed to meet the demands of the professional and coastal commercial user by offering tough easy-to-read instruments that give consistent performance day after day.
Product Details
- 90 degree scale (45 degree option also available).
- Tough, shock-proof 4.5-inch casing.
- Multiple lighting levels with zone lighting.
- Analog (V) interface and SimNet compatible.
- IP66 rated (for front face sealing of a correctly installed instrument – rear case IP20).
- External mounting kit available for full IP66 in exposed external installations.
Product Specifications
Connectivity
| NMEA 2000 |
1 x NMEA2000 SimNet port, 1 LEN |
Electrical
| Power Consumption, max. |
5W |
| Recommended Fuse Rating |
5A |
| Supply Voltage |
12/24V DC (10-31V DC) |
| Humidity |
Up to 95% RH |
Environment
| Operating Temperature Range |
-15 to +70ºc (+5 to +158ºf) |
| Storage Temperature Range |
-40 to +80ºc (-40 to +176ºf) |
| Waterproof rating |
IP66 |
MFD
| Compass Safe Distance – Metric, imperial |
400mm (1.3′) |
Physical
| Dimensions (W x H x D) |
115 X 115 X 68mm (4.5 X 4.5 X 2.7″) |
| Mounting Type |
Flush |
| Weight |
0.55 kg (1.2 lbs) |
Other
| Warranty Period |
2 Years |
| Interface |
keypad |
| Languages |
English |
