Scanstrut DS6-P Vertical Cable Seal [DS6-P]

DS6-P Vertical Cable Seal

Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.

Features:

• Watertight installation – 100% waterproof with an IP68 rating
• Easy and reliable installation – each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors – split-seal option does not require connector removal during installation.
•  Multi-Functional Dome Shape – the aesthetic dome-shaped profile provides a stronger, impact-resistant design and the outer dome provides an additional water shield.

Technical Specifications:

• Fits cable size (diameter) – .08″ to .24″ (2 – 6 mm)
• Fits connector size up to .24″ (6 mm) in diameter
• Height – .67″ (17 mm)
• Color – Grey
• Orientation – Vertical
• Material – ASA Plastic

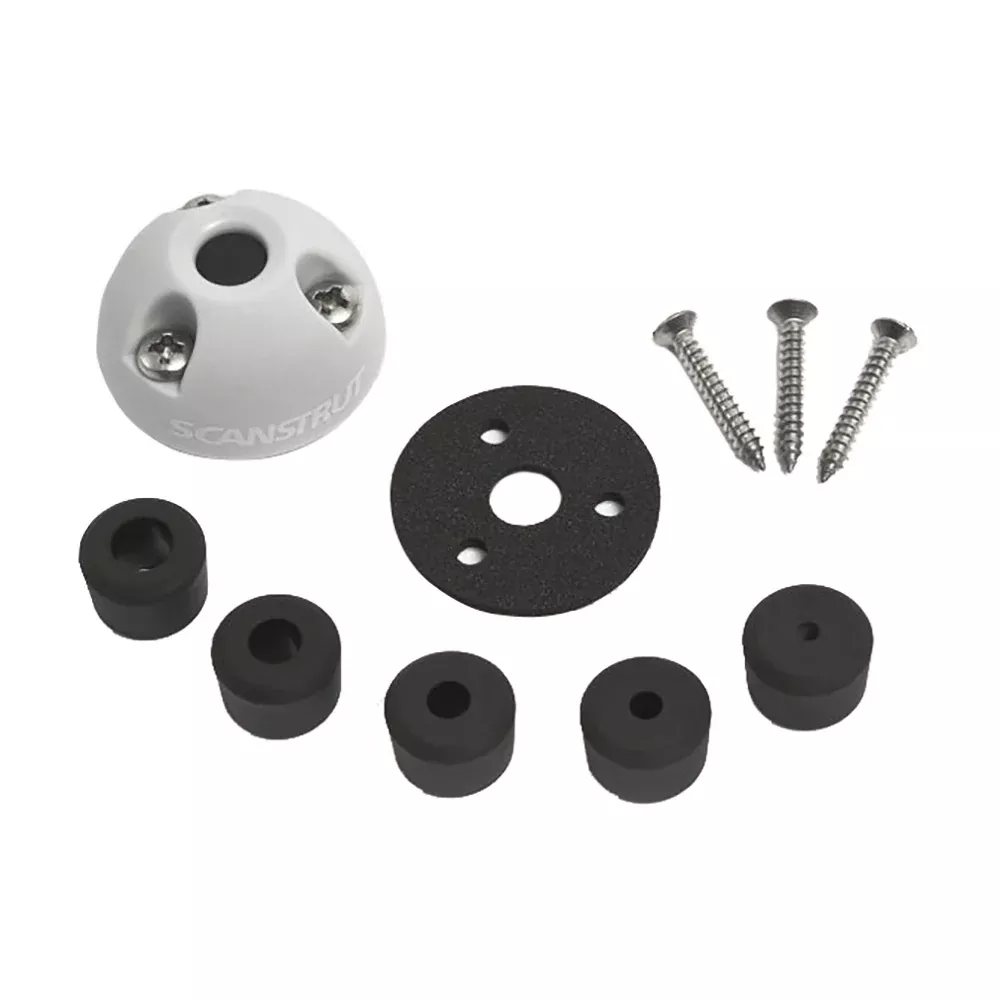

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Type: Deck Seal
• Box Dimensions: 1″H x 4″W x 8″L WT: 0.3 lbs
• UPC: 5060114794924

Quick Guide (pdf)
Brochure (pdf)
