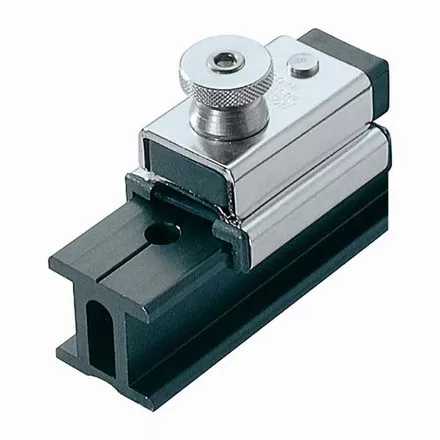

Ronstan Series 32 I-Track Adjustable Stop

Ronstan Series 32 I-Track Adjustable Stop

Series 32 spring-loaded track stop.

Specifications

• Stainless body and plunger
• Track fastenings: to suit 6mm (1/4″) countersunk fasteners at 100mm (3 15/16″) centres
• Stop holes: 50mm (2″) centres
• Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
• Minimum curve radisus:
  • For 76mm (3″) car. Min horizontal ‘A’ curve radius = 500mm (20″); Min horizontal ‘B’ curve radius = 500mm (20″)
  • For 157mm (6 3/16″) car. Min horizontal ‘A’ curve radius = 500mm (20″); Min horizontal ‘B’ curve radius = not suitable
