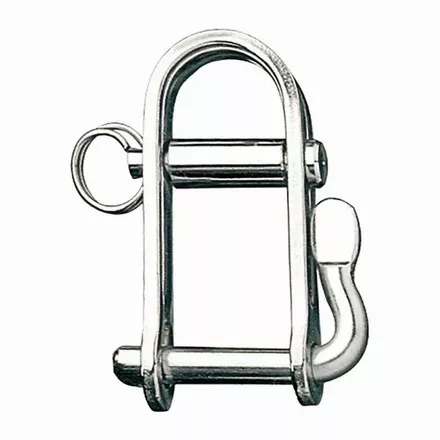

Ronstan Halyard Shackle – Multiple Sizes Available
Halyard shackles have a lever action for esay opening and closing, with a keyed pin for positive locking.
Features
- High strength to weight ratio
- Grade 316 stainless steel bodies and pins
| Part Number | Pin | Dimensions (AxBxCxD) | Weight | PL BL | UDL BL |
|---|---|---|---|---|---|
| RON-RF1032 | 3/16″ | 4.8 x 22 x 10.5 x 15mm | 30g | 900kg | 1200kg |
| RON-RF1033 | 1/4″ | 6.4 x 32 x 13 x 19mm | 55g | 1500kg | 2100kg |
| RON-RF1034 | 5/16″ | 7.9 x 39 x 18.5 x 20mm | 90g | 2200kg | 2700kg |
Notes: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
