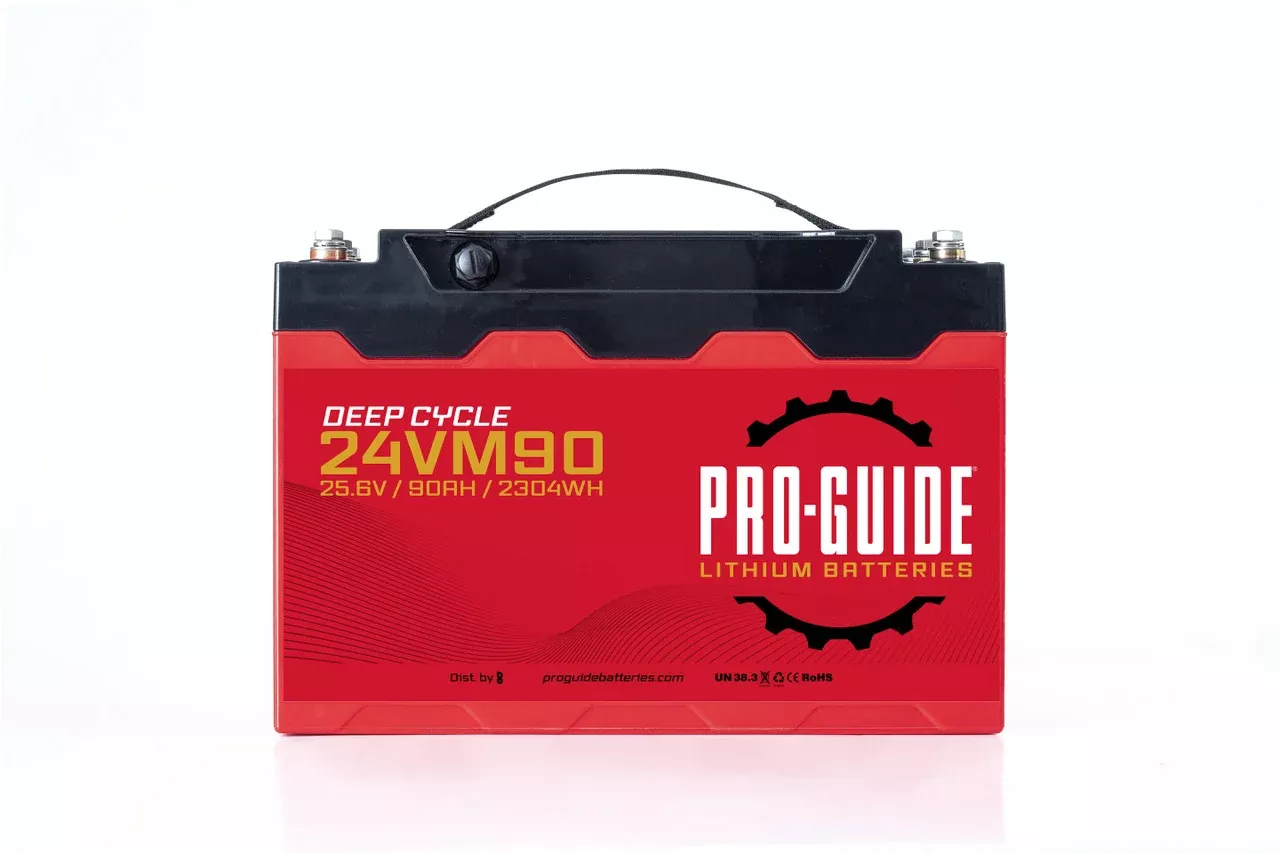

Pro-Guide Lithium // PGL24VM90-DP
Pro-Guide PGL24VM90 deep-cycle lithium battery offering 90Ah (2304Wh), durable 100A BMS, IP67 protection, Bluetooth monitoring, and Pro-Boost reserve with 10% capacity.
The PGL24VM90 from Pro-Guide Batteries delivers deep-cycle reliability with 90 amp-hours at 24 volts, totaling 2304 watt-hours. This rugged battery features IP67 water and dust resistance, Bluetooth connectivity for monitoring, and a 100-amp BMS. Pro-Boost mode provides a 10% capacity reserve, making it ideal for marine, RV, and off-grid deep-cycle applications.
| Unit Specifications | |
|---|---|
| Group Size | 31 |
| Voltage | 24 |
| Cold Cranking Amps (CCA) | N/A |
| Marine Cranking Amps (MCA) | N/A |
| Amp Hours | 90AH |
| Watt Hours | 2304WH |
| Charge Current (Standard / Max) | 10-18A / 45A |
| Terminal Type | 3 x Internal Thread (M8) |
| Weight (lbs / kg) | 41.89lbs / 19kg |
| Length (in / mm) | 13.07in / 332mm |
| Width (in / mm) | 6.93in / 176mm |
| Height (in / mm) | 8.9in / 226mm |
| Bluetooth | Enabled |
| Heating | Enabled |
| NMEA 2000 | Compatible |
