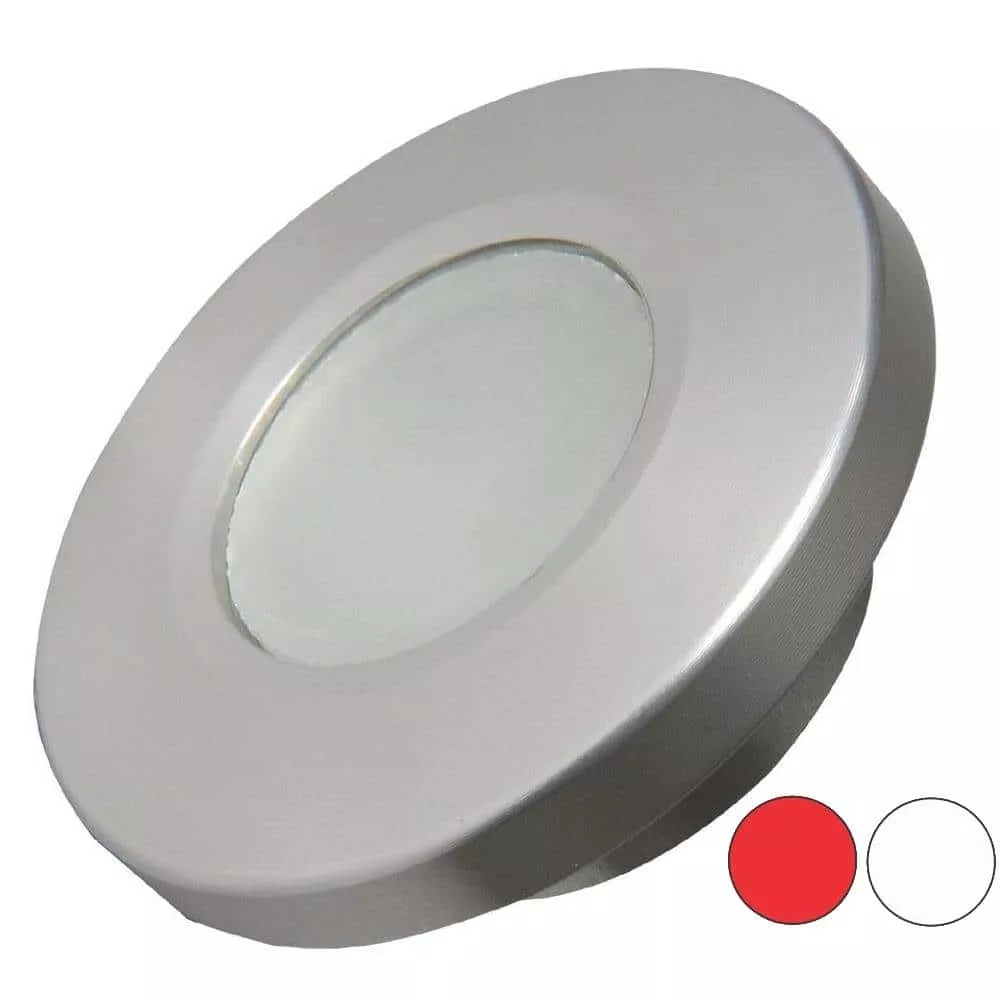

Lumitec Orbit – Flush Mount Down Light -Brushed Housing – White/Red
Replace your old boat’s poor and dull overhead factory lighting with our Orbit dual-color LED Down Light.
Class-leading output, weatherproof construction, and the simplest installation in the industry makes Orbit LED Down Light stand apart from the crowd.
With a shallow-depth profile of less than 1/2″ and a secure composite mounting system this down light is ideal for salons and staterooms, as well as helm stations, flybridges, and hard tops.
TTP Technology enables advanced features like dimming and multi-color control without external control modules, specialized switches, or additional wire runs.
This 2-color LED Down Light is made with durable brushed stainless housing. It is completely water sealed with no moving parts to break or wear out.
Proudly designed and manufactured in the USA. All our courtesy and accent lightings are IP67 waterproofing compliant, energy efficient and provides light anywhere it’s needed.
Specifications:
- Lumens: 160
- TTP: Yes
- 3rd Party Dimmable: Yes
- Voltage: 10 – 30vDC
- 12vDC Amps: 290mA
- 24vDC Amps: 160mA
- Correlated Color Temperature: 5000
- Color Rendering Index: 70+
- Rated Watts: 4
- Operating Temp (°F): -31 to + 131 F
- Operating Temp (°C): -35 to +55 C
- Width: N/A
- Height: N/A
- Depth: 0.75″ (1.9 cm)
- Mounting Hole Diameter: 1 1/4″
- Diameter: 2.00″(5 cm)
