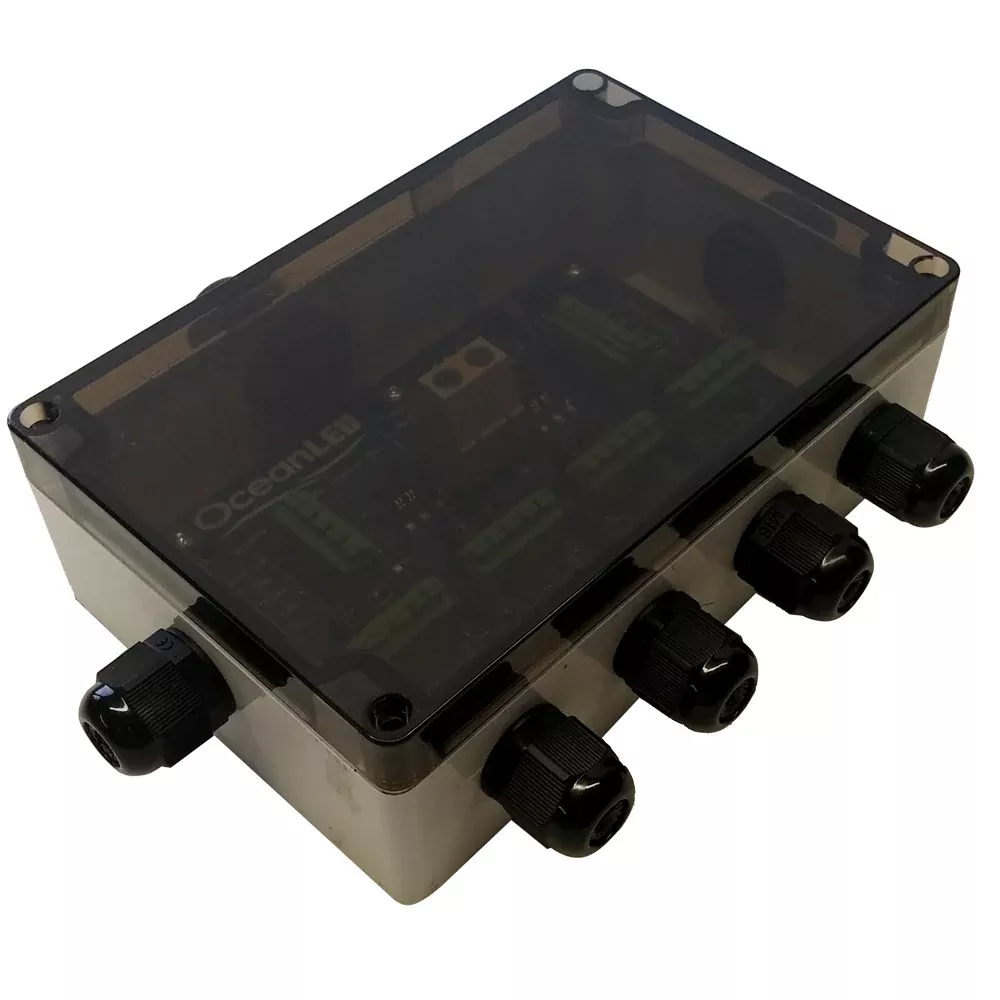

OceanLED X-Series DMX Junction Box [011702]

X-Series DMX Junction Box

For use in-conjunction with OceanLED Colours APP and DMX controller. Allows for up to 4 DMX connections to OceanLED Xtreme Series DMX Colours Lights per Junction Box. Can be linked to further DMX junction boxes to connect a series of LED Lights.

Features:

• 12/24v DC
• IP66
• 4x Fused Power/DMX outputs (4A max power output)
• Built-in DMX terminator
• DMX input/output to allow multiple expansion
• To be used in conjunction with OceanLED Xtreme Series DMX Colours
• Robust Polycarbonate Design
• See-through lid to view connections
• Semi-transparent LID

Specifications:

• Warranty: 2 years

Quick Guide (pdf)
