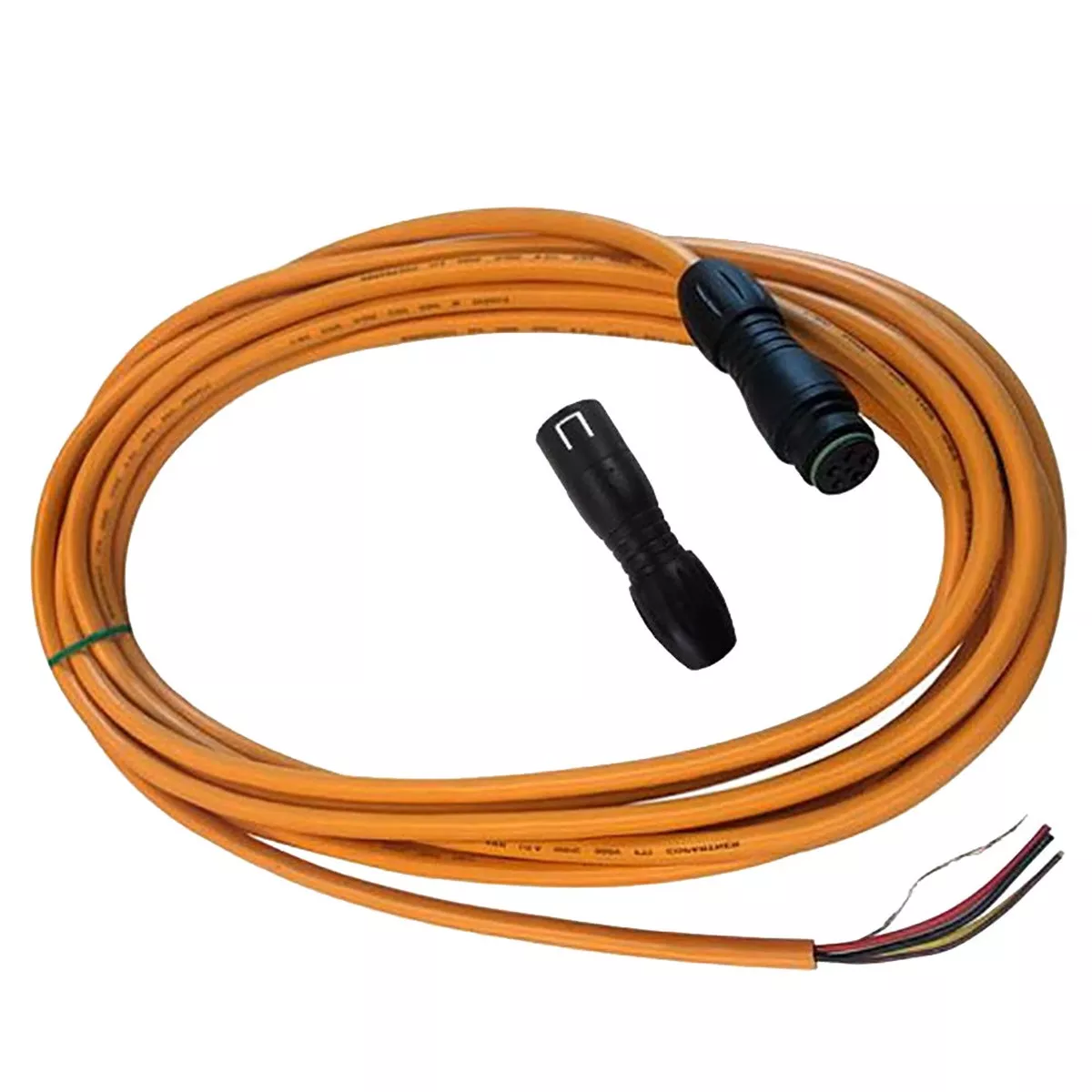

Control Cable & Terminator Kit for Standard Switch Control
The Explore control input cable kit can connect either a switch input or DMX controller to the Explore E6 and E7 lights. The kit includes a 5-meter control input cable and terminator.
Specifications:
- Cable Length: 5m (16 4)
- Cable Specifications: Tinned Copper; 1x Twisted Pair 24 AWG; 2x 20 AWG +; Foilscreen+Drain; 5.5mm OD
- Connector (End 1): 5-way IP67 Plug
- Connector (End 2): Bare End – for own connection to switch or DMX controller
- Terminal Connector: 5-way IP67 Plug
Quick Guide (pdf)
