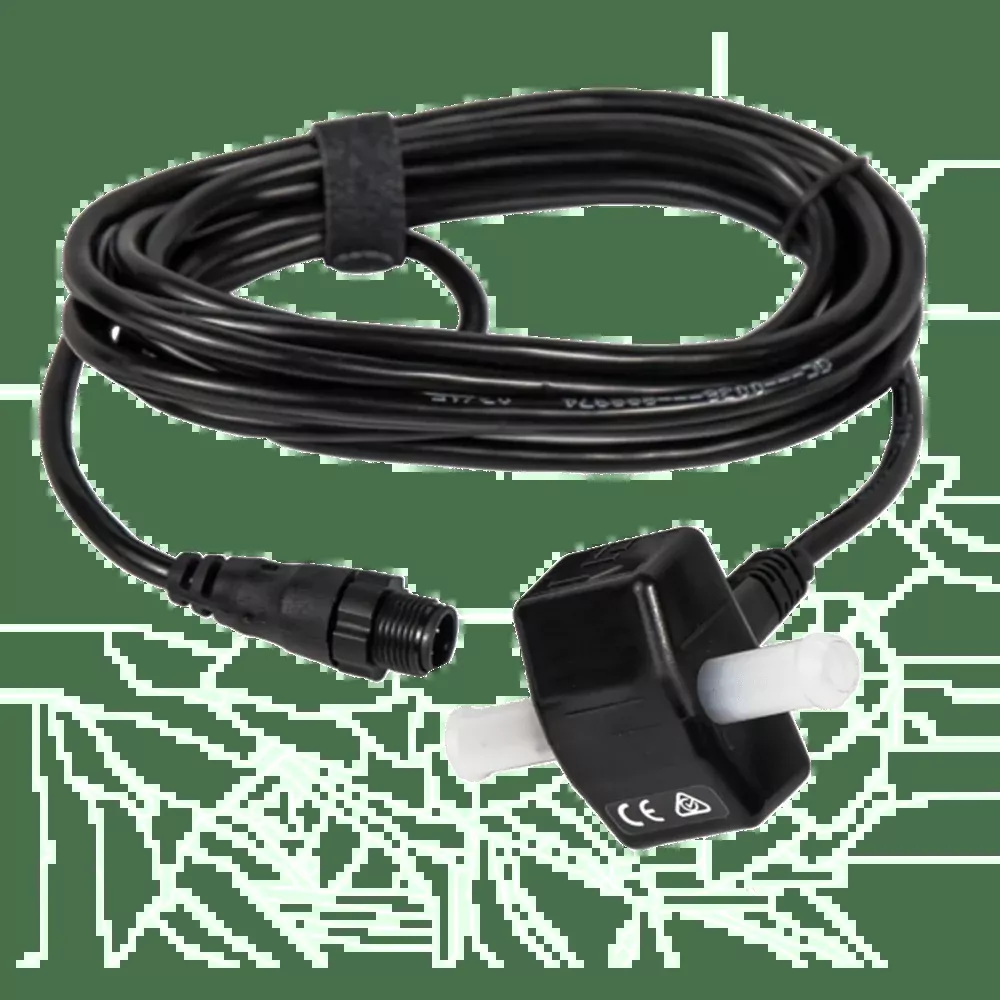

Fuel Flow Sensor
Gasoline only. One required per engine. Up to 3 engines supported.
Outputs:
-Fuel Flow
-Tank Fuel Used
-Trip Fuel Used
-Seasonal Fuel Used
Cable Length| 10 Ft
Fuel Line Diameter| 3/8″ (9.5 mm) Inside Diameter
Flow Rate Measured| Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system| 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location| Above the max level of the fuel tank, in-line after the fuel filter and any Y’s or T’s in the line
Package| The Fuel Flow Sensor, N2K T and 2 (two) 1″ hose clamps
Fuel Type| Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems.
Hole required to route through a bulkhead| 22mm (7/8″)
Multiple Fuel Flow sensors possible| Yes.
Product Details
- Fuel Flow.
- Tank Fuel Used.
- Trip Fuel Used.
- Seasonal Fuel Used.
