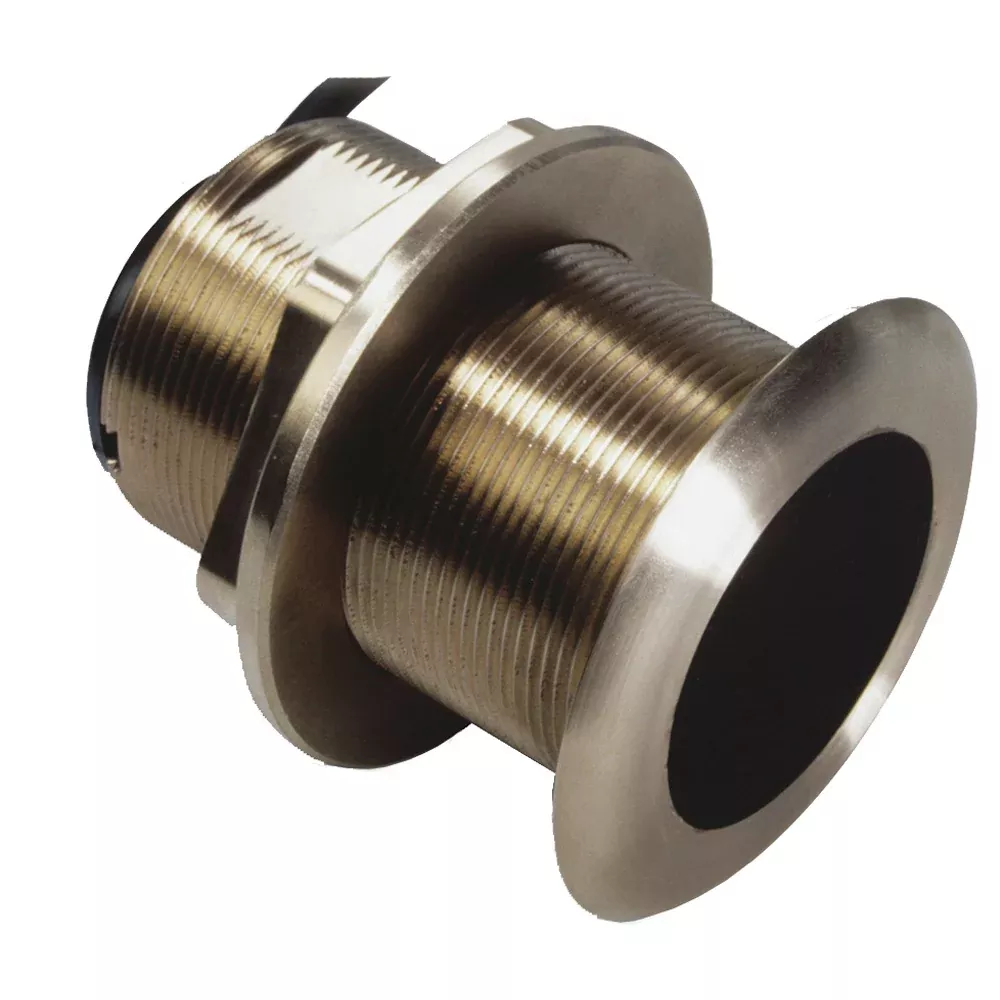

Navico B60-20, 20 Degree Tilted Element Transducer

Original price was: $319.99.Current price is: $172.65.

Sale!
SKU: CWR-31539 Category:
Share

B60 Tilted Element™ 20°

20° titled version is designed for 16° – 24° deadrise angles

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.

Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.

Features:

  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • 7 Pin Blue Connector
  • Bronze

Specifications:

  • Pins: 7
  • Mounting Style: Thru-Hull
  • Temperature: Yes
  • Speed Included: No
  • Imaging: Standard
  • Chirp: No
  • Cable Length (Feet): 33′
  • Box Dimensions: 4″H x 8″W x 10″L WT: 5.2 lbs
  • UPC: 421945344354

Owner’s Manual (pdf)
Brochure (pdf)
