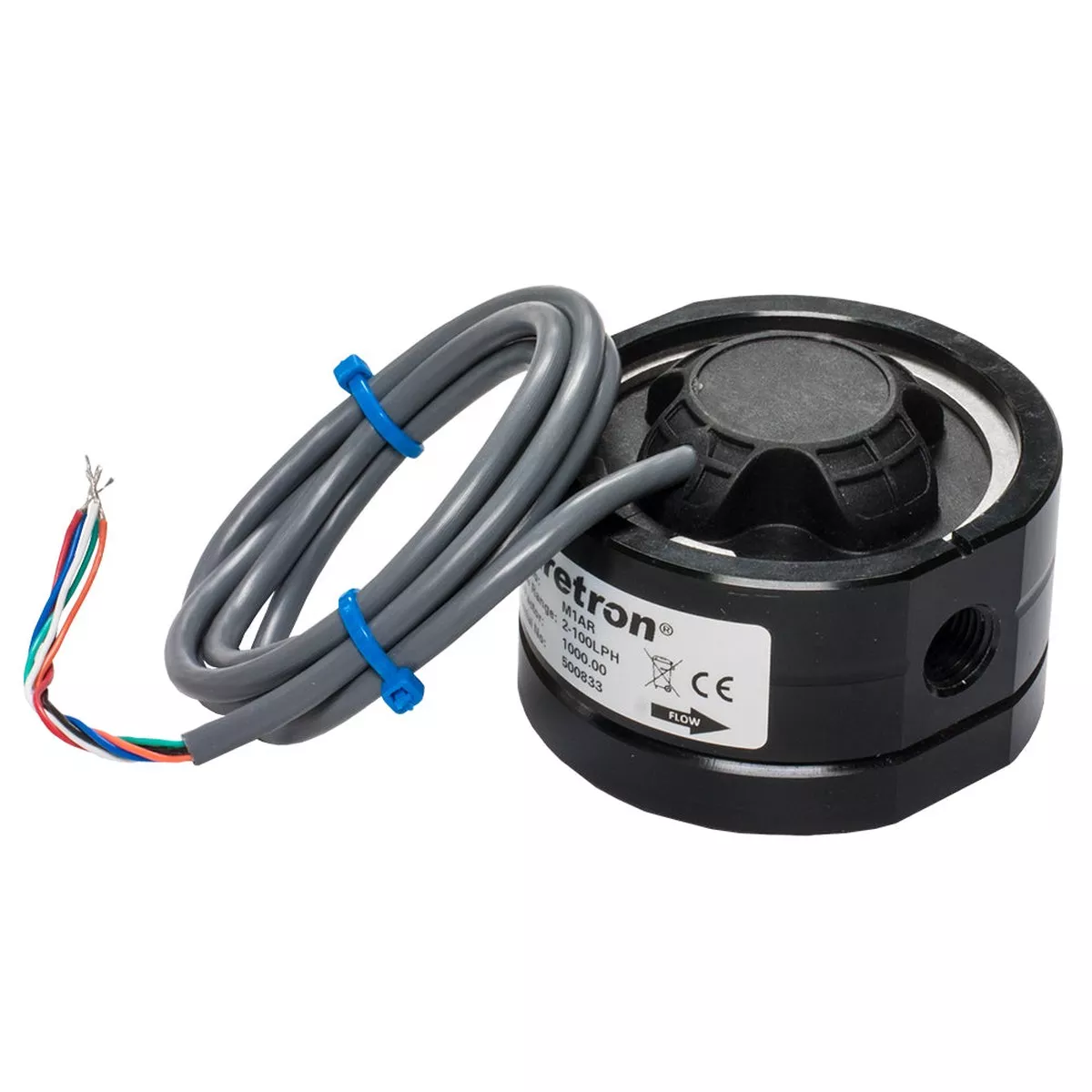

Maretron Fuel Flow Sensor – 2-100 LPH [M1AR]

Fuel Flow Sensor – 2-100 LPH

Features:

• Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)
• All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4″ NPT female threads
• Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)
• Cable Length: 1m (3.28′)
• Strainer Size: 200 Mesh (If not already installed after fuel filter)
• Port Size: 1/4″ NPT Female
• Maximum Viscosity: 1000 cPs
• Maximum Operating Pressure: 68.95 Bar (1000 PSI)
• Weight: 775g (1.71 lb)
• Construction: Aluminum Housing Material
• Rotors: PPS (Ryton)
• Shafts: 316/304 Stainless Steel
• Magnets: Samarium Cobalt
• O-Ring: FKM (Viton™)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
