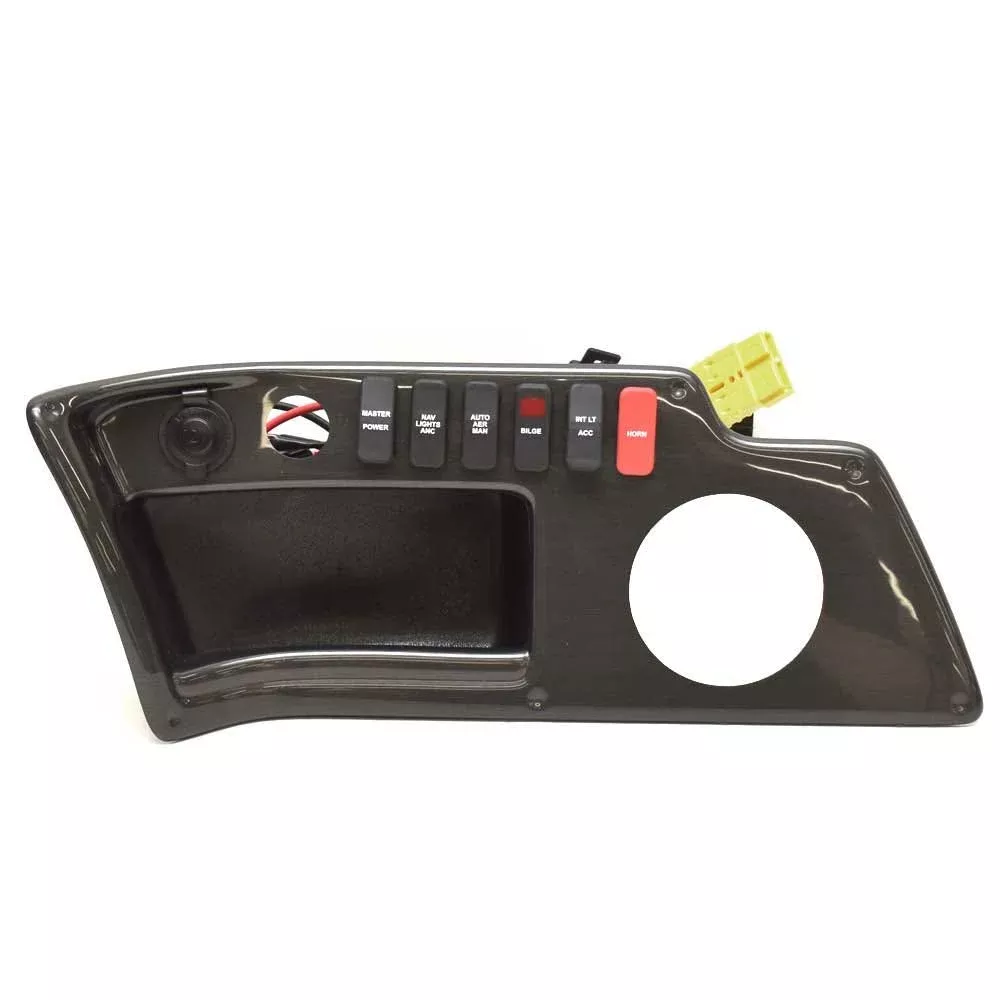

Boat part number 8304767 is a new switch panel for 2025 Impact Lund Boats, part number 2249300 .This switch panel is constructed out of charcoal gray marine grade plastic with a brushed glossy finish. It measures approximately 17 3/4″ L x 6 5/8″ H x 4″ D overall. Requires an approximate 8″ L x 4″ H cutout. Features (1) 3 1/2″ Dia. cutout and a cubby hole that measures approximately 7″ W x 3 1/8″ D x 3″ H. Features the following:
- (1) 12V Receptacle Port
- (1) On/Off – “Master Power” Rocker Switch
- (1) On/Off/On – “NAV/NC Lights” Rocker Switch
- (1) On/Off/On – “Aerator Auto MAN” Rocker Switch
- (1) Illuminated On/Off – “Bilge” Rocker Switch
- (1) On/Off – “INT Lights” Rocker Switch
- (1) Momentary On/Off “Horn” Rocker Switch
Connections:
- (1) 2-Spade Male Connector
- (1) 16-Spade Male Connector (13 active pins)
- (1) 16-Spade Female Connector
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.Specifications:
- Boat Manufacturer: Lund Boats
- Model: 2025 Impact
- Part Number: 2249300
- Material: Plastic
- Color: Charcoal Gray
- Finish: Brushed / Glossy
- Overall Dimensions: 17 3/4″ L x 6 5/8″ H x 4″ D
- Cutout: 3 1/2″ Dia.
