Home » Shop » NMEA Cables & Sensors » Lowrance Yamaha Engine Interface Cable [120-37]

Lowrance Yamaha Engine Interface Cable [120-37]

Original price was: $100.80.Current price is: $60.45.

Sale!
SKU: EM-32084 Category:
Share

Yamaha Engine Interface Cable

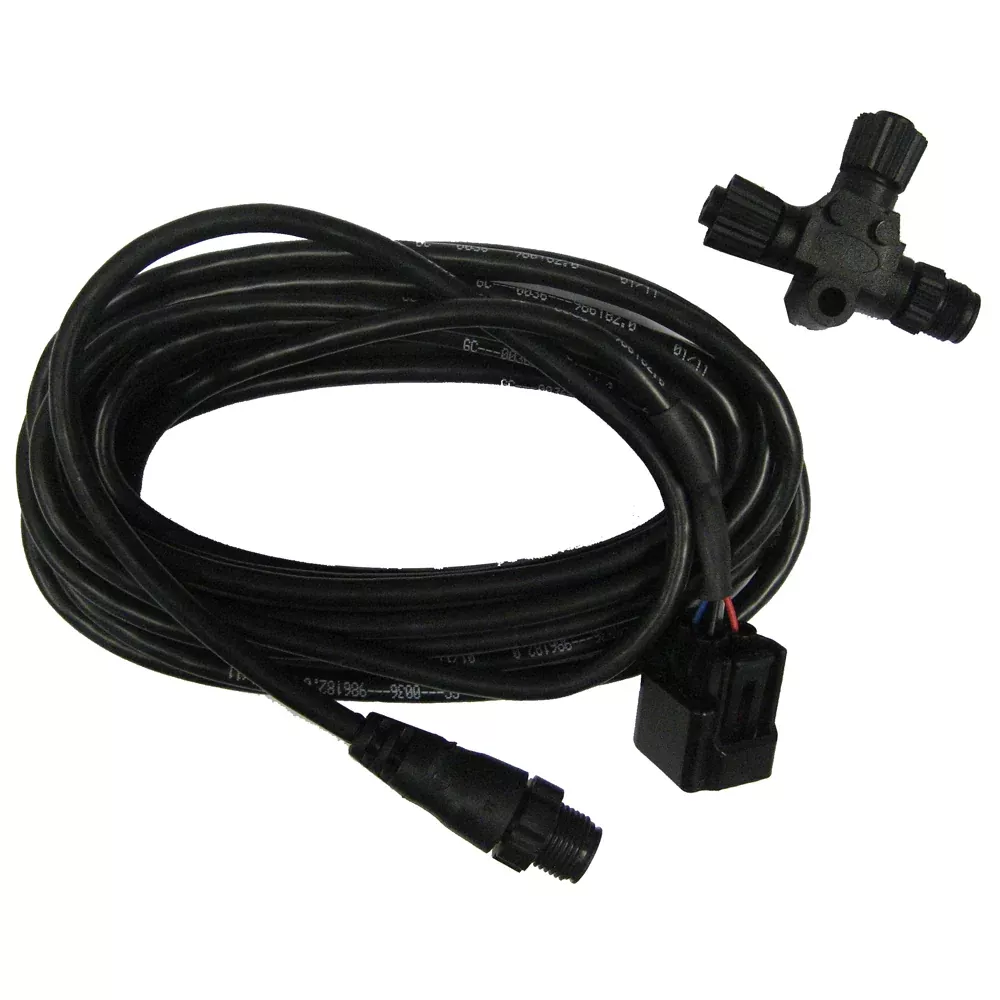

Yamaha engine interface cable 4.5 m (15 ft) and T-connector

Connects to Yamaha engines without Yamaha CommandLink Plus system.

  • 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
  • 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.

Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350

RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure

*Digital trim must be connected by a Yamaha dealer.

*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.

Works with: NMEA 2000 Compliant Units

Specifications:

  • Data Interface: NMEA 2000
  • Cable Length (Meters): 4.5m
  • Box Dimensions: 2″H x 4″W x 10″L WT: 0.45 lbs
  • UPC: 042194529820
