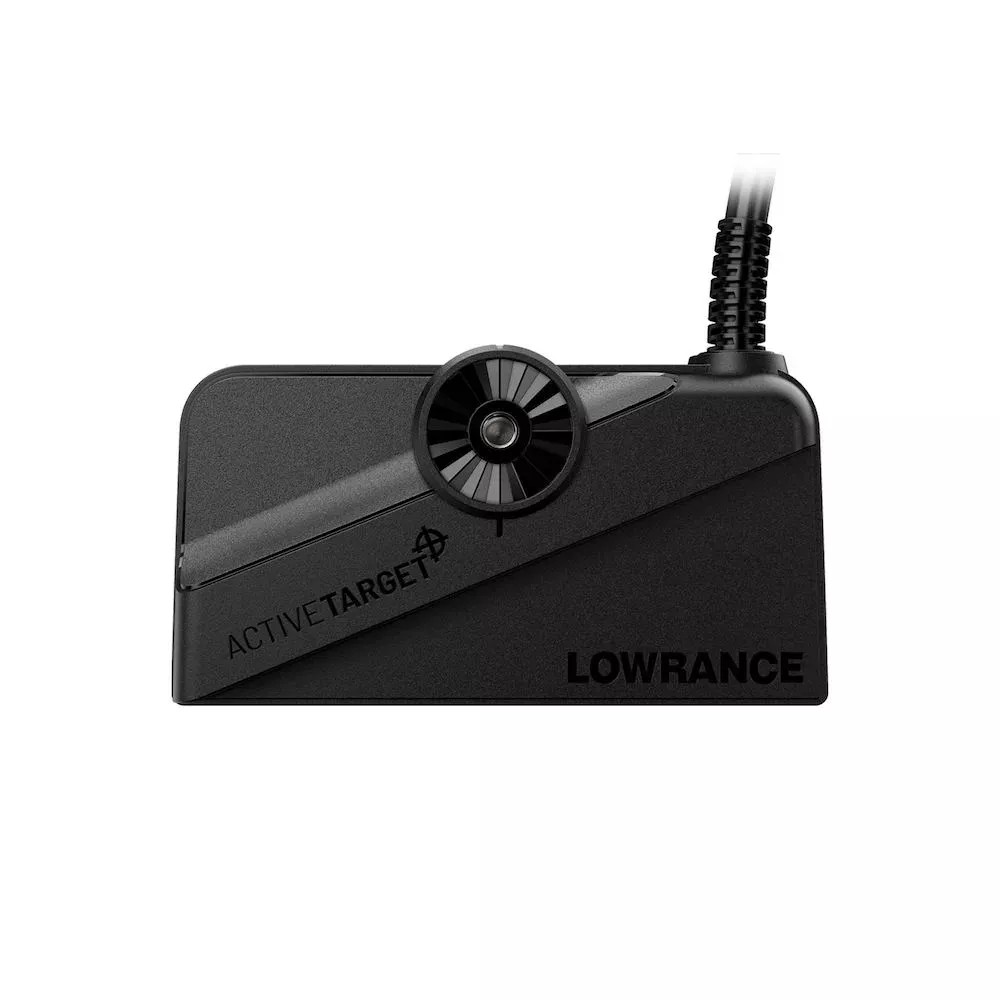

ActiveTarget™ Live Sonar – Game On!
Watch high-resolution images of fish movements – tracking them as they swim in and around cover with ActiveTarget™ Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.
Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.
ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters.
Details:
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- Compatible with HDS LIVE, HDS Carbon and Elite FS
Especifications:
Cartography
| Chart Format | N/A |
|---|---|
| Charts Supported | N/A |
Connectivity
| NMEA 0183 Sentences supported | N/A |
|---|---|
| Bluetooth | N/A |
| Ethernet | Yes:1 – 100 Mbit Ethernet Port |
| NMEA2000 Pgns | N/A |
| NMEA 0183 | N/A |
| NMEA 2000 | N/A |
| PC Connectivity | N/A |
| Video | N/A |
| WiFi | N/A |
Display
| Backlight Color | N/A |
|---|---|
| Resolution | N/A |
| Screen Brightness | N/A |
| Size and Type | N/A |
| Viewing Angles | N/A |
Electrical
| Power Consumption, max. | 1.5A @ 13.8VDC |
|---|---|
| Power Consumption, typical | 1.5A @ 13.8VDC |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 10.8 VDC – 31.2 VDC |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
Environment
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
|---|---|
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -22°F To 158°F (-30°C to 70°C ) |
| Waterproof rating | IP67 |
MFD
| Compass Safe Distance – Metric, imperial | N/A |
|---|
Physical
| Dimensions (W x H x D) | Module:8.63″ (219.3mm) X 7.56″ (192.1mm) X 2.86″ (72.9mm)Transducer:5.90″ (149.8mm) X 3.24″ (82.4mm) X 2.28″ (58.0mm) |
|---|---|
| Mounting Type | Module:Surface MountTransducer:Bracket Mount |
| Weight | Module:4.12 lbs (1.86 kg)Transducer:2.67 lbs (1.21 kg) |
Radar
| Frequencies | 550kHz – 1100kHz |
|---|---|
| Max Depth | 200′ (60.96m) |
Other
| Warranty Period | 1 Year + 4 additional years ofupgrade optionsTotaling 5 years |
|---|---|
| Interface | Ethernet to:HDS ProHDS LiveHDS CarbonElite FS |
| Languages | N/A |
