See the Difference
Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
FishReveal™
Get the best of Lowrance® CHIRP sonar and DownScan Imaging™ on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Designed for Clarity

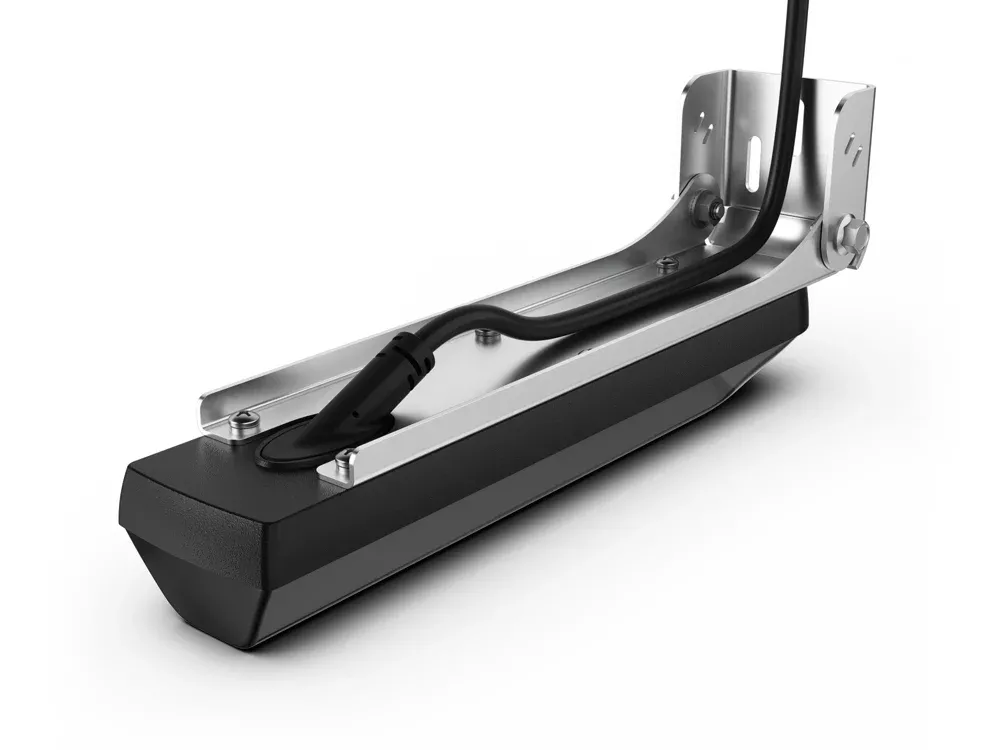

The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
Details
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- Lowrance® CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displays
Specifications
Electrical
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
|---|
Environment
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
|---|---|
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -22°F To 158°F (-30°C to 70°C ) |
| Waterproof rating | IP67 |
Physical
| Dimensions (W x H x D) | NAME? |
|---|---|
| Mounting Type | Transducer:Bracket Mount |
| Weight | Transducer:2.67 lbs (1.21 kg) |
Radar
| Frequencies | CHIRP:High CHIRPMedium CHIRPBroadband:83 kHz200 kHzActive Imaging HD:SideScan:Low CHIRP: 455 kHz (445 kHz – 495 kHz)High CHIRP: 1075 kHz (1065 kHz – 1115 kHz)DownScan:Low CHIRP: 700 kHz (690 kHz – 740 kHz)High CHIRP: 1200 kHz (1190 kHz – 1240 kHz) |
|---|---|
| Max Depth | 2D Sonar:Broadband/CHIRP:200 kHz/High CHIRP – 500′ (152.4m)83 kHz/Medium CHIRP – 1000′ (304.8m)SideScan:High Frequency: 150′ (45.72m)Low Frequency: 300′ (91.44m)DownScan:High Frequency: 150′ (45.72m)Low Frequency: 300′ (91.44m) |
Other
| Warranty Period | 1 Year + 4 additional years ofupgrade optionsTotaling 5 years |
|---|---|
| Interface | Direct Connect to:HDS ProS3100Ehternet to:*HDS Live*Elite FS* Requires S3100 Module |
