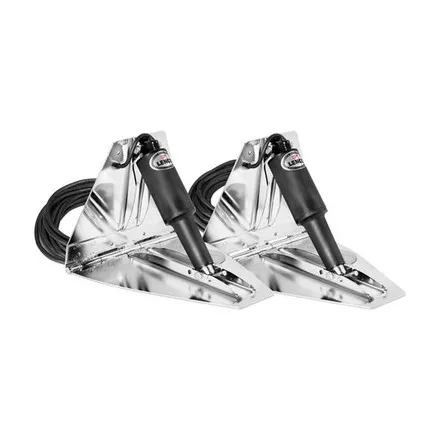

Lenco Trim Tab Kit, High Performance without Switch
This powerful, unique series is designed for multiple engine applications with limited transom space.
- The contoured blade design allows extra space for engines to turn while reducing cavitation to the props.
- Blades are constructed of Electro-Polished 7 gauge (4.6 mm) laser cut 304 stainless steel with heavy duty hinge with 3/8 inch (9.5 mm) diameter hinge pin.
- Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8” (9.5 mm) stainless steel mounting bolts.
- 3.75 inch (9.5 cm) sacrificial anodes installed.
- 5 Year Warranty (Recreational Use).
Kit Includes:
- (2) 7-gauge stainless steel Electro-Polished blades
- (2) 15056-001 XD Extreme Duty actuators with 6ft (1.8 m) leads & Deutsch connectors
- Lenco owner’s/installation manual
PLEASE NOTE: Boat-mounting hardware not supplied. Actuator extension harness not supplied
| Part Number | Approx Boat Length | Finish | Volts | Switch Kit | L x W | Min. Transom Height |
|---|---|---|---|---|---|---|
| LEN-55468 | 4.9 – 12.2 m | Electro Polished | 12V | Not Included | 457 x 305 mm | 267mm |
