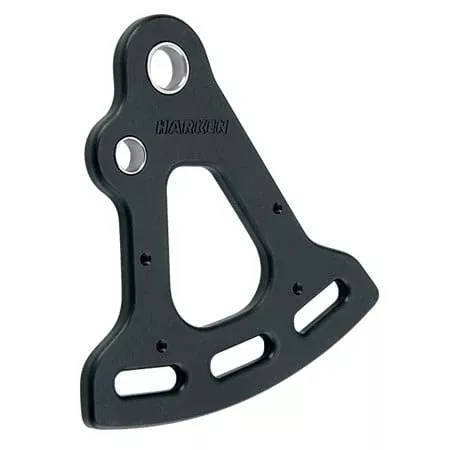

Aluminum web-on headboard plates are easy for sailmakers to install. Plates have radiused edges to protect the sail and fit 1 in (25 mm) webbing strap. Holes threaded into plates accept 416 cheek blocks for leech line. Web-on plates are required for the 3852 System B CB headboard car. Contact Harken® for headboard plate for non-CB systems.
Product Specifications
Length (mm) 172 mm
Length (in) 6 3/4 in
Width (mm) 161 mm
Width (in) 6 3/8 in
Weight (g) 292 g
Weight (oz) 10.3 oz
A (mm) 172 mm
A (in) 6 13/16 in
B (mm) 161 mm
B (in) 6 3/8 in
C (mm) 124 mm
C (in) 4 7/8 in
