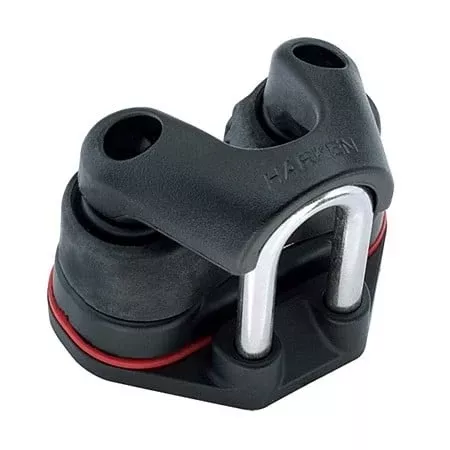

Harken Standard X-Treme Angle Fairlead

The X-Treme Angle Fairlead allows releasing and recleating at angles up to 90° to the cleat. This sets it apart from other fairleads where line uncleats at extreme angles and can’t recleat without centering the line.

Product Specifications

Height above cam (mm) 24 mm
Height above cam (in) 15/16 in
Height (mm) 57 mm
Height (in) 2 1/4 in
Length (mm) 46 mm
Width (mm) 65 mm
Length (in) 1 13/16 in
Width (in) 2 9/16 in
Weight (oz) 1.92 oz
Weight (g) 56 g
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Fastener spacing (mm) 38 mm
Fastener spacing (in) 1 1/2 in
Fits cam 365
