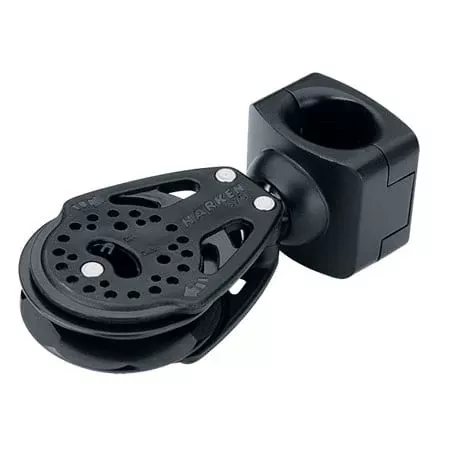

Harken® recommends equipping every system with Carbo lead blocks for safe furling from the cockpit. Use the 7401 40 mm block on the bow pulpit as an inboard lead. Both the 7401 and 7402 have ball and socket bases to align blocks for smooth leads aft.
Product Specifications
Sheave Ø (mm) 40 mm
Sheave Ø (in) 1 9/16 in
Weight (oz) 3.7 oz
Weight (g) 106 g
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 220 kg
Maximum working load (lb) 485 lb
Use with 25 mm (1″) stanchions
