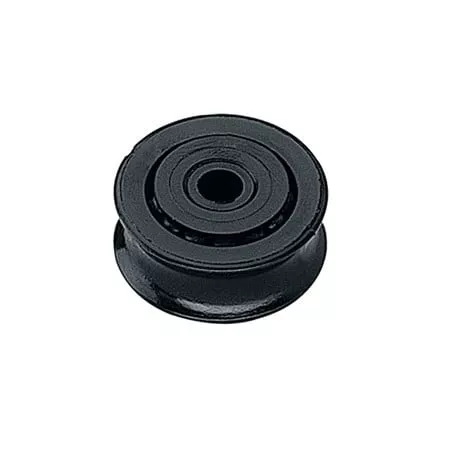

Self-contained sheaves are designed for sailors to use in custom applications. The Micro, Bullet, and Big Bullet sheaves are Delrin® with Delrin® ball bearings. They are scored for rope. Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Product Specifications
Sheave Ø (mm) 22 mm
Sheave Ø (in) 7/8 in
Width (mm) 10 mm
Width (in) 13/32 in
Weight (g) 3 g
Weight (oz) 0.1 oz
Center pin Ø (mm) 4.75 mm
Center pin Ø (in) 3/16 in
Maximum line Ø (mm) 6 mm
Maximum line Ø (in) 1/4 in
Maximum working load (kg) 91 kg
Maximum working load (lb) 200 lb
