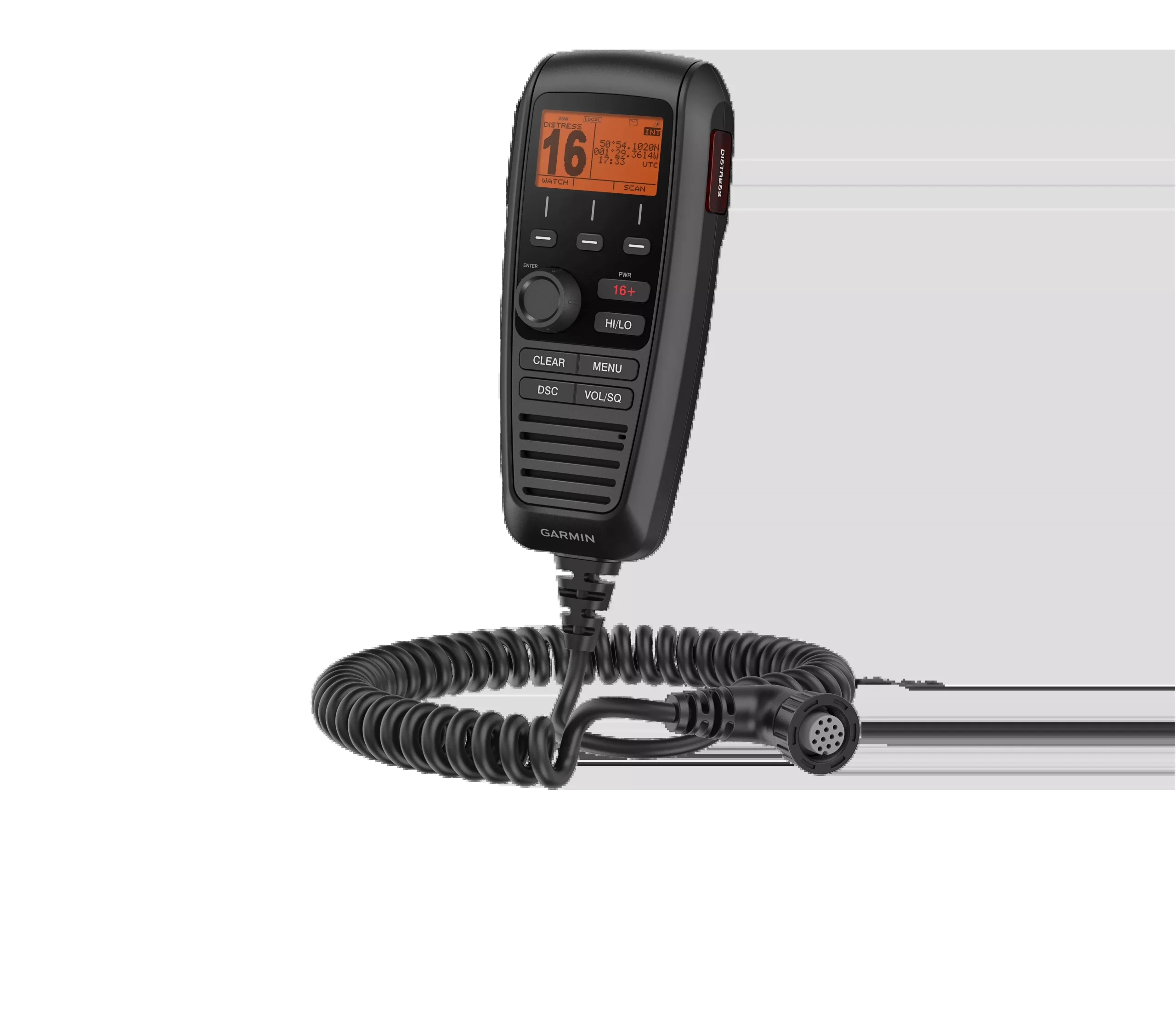

The GHS 11i enables the full operation of the VHF 210i radio from remote locations. It does not include complex components and has a simple design with multifunction buttons, a 2.7″-inch diagonal dot matrix screen and a coiled cable that extends from 30 cm (1 ft) to almost 1.5 m (5 ft).
It has a rotating/button to control the volume, the squelch and the selection of channels. The exclusive button will offer you easy access to 16/9 channels. All the buttons are similar to those of the VHF radio.
In addition, the GHS 11i includes a microphone with intercom functions when connected to a speaker.
Specifications:
- Dimensions: 6.9 X 15.4 X 4.0 cm
- Weight: 0.7 lb (0.3 kg)
- Cable length: 30 cm coiled (1.5 m extended)
- Safety distance of the compass: 66 cm (26 inches)
- Screen: backlit LCD
- Built-in microphone and speaker: yes
- 16/9 or 16+ channel button: yes
- Languages: English, French, Italian, German and Spanish
- Operating temperature range: from -15 °C to 70 °C
- Water resistance rating: IPX7
FAQs
Marine sealant is optional but recommended to help seal mounting holes and cable entry points.
Apply marine sealant between the mounting plate and the mounting surface to help seal the holes if desired.
Feed the extension cable connector through the back of the mounting surface during installation.
Installation requires a pencil, drill, 22 mm drill bit, 3 mm drill bit, 4.76 mm wrench, Phillips screwdriver, and optionally marine sealant.
To avoid interference, do not install the handset closer than 70 cm (27.5 in.) to a compass.
The package includes screws to mount the handset connector and cradle; use appropriate hardware for your surface if needed.
You can use the included screws to mount the handset connector and the handset cradle mount on your boat.
