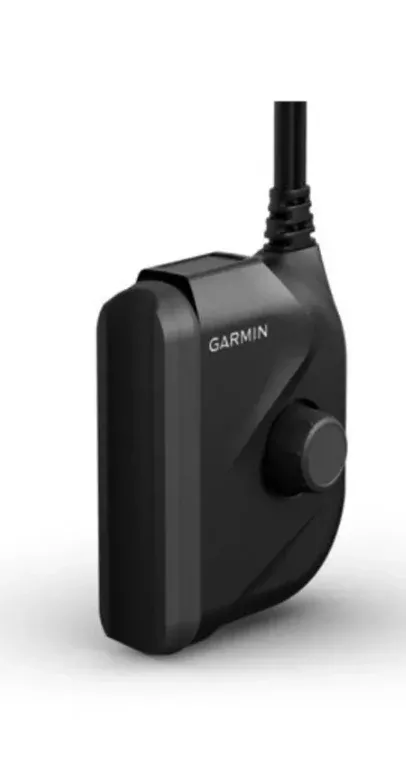

Transducer for electric drag motor with two Panoptix LiveVü modes
- The LiveVü forward probe shows the structures and fish that are in front of and around the boat
- The LiveVü downward probe shows what is around and under the boat, which will be very useful in vertical fishing and jigging
- Narrow beam angle (20 degrees) for clear, sharp and higher resolution images
- Installation on the axle or drum of the electric drag motors
- Single-screw mounting design for simple mode changes
Garmin is the first company to offer your boat two Panoptix probe imaging modes in a single transducer. Panoptix, the probe that sees everything, is different from anything you’ve seen in the water. It offers you the possibility of seeing everything that surrounds your boat, and what is under it, in real time and at a distance of up to 90 m.
It’s not just a probe, it’s a Panoptix probe
Panoptix provides a whole new perspective on fishing. Other probes only show images of the fish over which the transducer has passed. To capture these images, it is necessary for the boat to move. Everything that appears on the screen is technically history; it’s a thing of the past. Panoptix LiveVü forward and the LiveVü down probes allow the boat to be in motion or stopped. Whatever the orientation of the electric drag motor, you will see live images of what happens underwater.
Fishing comes to life with Panoptix
You can see the bait as it dives, as well as its depth and movement when you recover it. You can see how it moves in relation to the structure in the water. You can see the way the fish swim and react to the bait. If they attack, you will be able to see and feel how they sting. Once they are on the hook, you will be able to see the fight on the screen in real time. With Panoptix LiveVü forward and LiveVü down, you will be able to see that everything comes to life at a distance of up to 90 m in front of and under the boat.
Specifications:
| Physical And Performance Characteristics | |
|---|---|
| Frequency | 417 kHz |
| Energy | 48 W |
| Beam Width | 90°x20° |
| Maximum Depth | 90 m down; 60 m forward |
| Cable Length | 4 m power cable; 4 m Ethernet cable |
| DEPTH/SPEED/TEMPERATURE | Depth and temperature |
| Number of Sideburns | Ethernet |
| Aft Mirror Angles Allowed | Support for axle or drum of electric trawl motor |
FAQs
Grommets don’t create a waterproof seal. Apply marine sealant as needed after cable installation.
Secure the transducer cable to the shaft or other secure location with cable ties to prevent damage.
A 4.0 A mini 32 Vdc fuse must be used to prevent damage and maintain warranty.
Use cable ties to secure the transducer cable to the shaft or another secure location.
The transducer’s housing is made from ASA plastic.
The PS22-TR uses ASA plastic as its construction material.
Insert a software update card after booting the chartplotter and follow on-screen instructions. Do not remove the card until prompted.
