Thanks to the clear view of the elements that are under the boat, you will enjoy an unparalleled fishing experience.
REAL-TIME Information
View live easy-to-interpret probe images of fish swimming nearby, as well as clearly defined structures. You can also observe the hook while you recover it and even distinguish fish species in real time.
Excellent Reach
Not only will you be able to see completely clear images of what is around the boat, but you will also be able to see at a distance of up to 60 meters in the forward and downward modes, even when the boat is immobile.
Stabilization of the Image
Attitude Heading Reference System stabilises the sonar view on your chartplotter screen, even in rough conditions.
Simple Connection to Your System
Integrate this uncomplicated system with your Garmin plotter compatible with the simple plug-and-play connector for Garmin network.
Physical and performance characteristics |
|
| Dimensions of the Unit (WIDTH/HEIGHT/DEPTH) | GLS 10 probe module: 24.5 x 14.9 x 6.5 cm; LVS32-TH transducer without bar: 24.4 x 4.6 x 13.7 cm; LVS32-TH transducer with bar: 24.4 x 8.6 x 20.6 cm |
|---|---|
| Weight | GLS 10 probe module: 2.0 kg; LVS32-TH transducer without bar: 2.0 kg; LVS32-TH transducer with bar: 2.3 kg |
| Water Resistance Classification | IPX7 |
| Temperature Range | GLS module 10: operation: from -15 °C to 70 °C; Panoptix LiveScope LVS12 transducer: operation: from 0 °C to 40 °C |
Electric |
|
| Feeding Input | 10 – 32 V |
|---|---|
| Electricity Consumption | Typical 21 W; máx. 58 W |
| FUSE | 7,5 A |
Probe specifications and functions |
|
| Frequency | 530 – 1100 kHz |
|---|---|
| Transmission Power | 500 W |
| Maximum Depth | Forward: 61 m |
Connections |
|
| Garmin Marine Network Ports™ | 1 (small connector) |
|---|
FAQs
For best possible performance, follow included installation instructions. If difficulties arise, contact Garmin Product Support or a professional installer.
Pros include compatibility with all engines and hulls, but increased installation complexity and the need to drill a hull hole. Flush types reduce drag; external variants provide maximum sonar energy.
Thru-hull transducers require a hole in the hull and placement increases installation complexity. Flush and external styles are available, with flush types recommended for smaller boats and external designs for larger vessels using a fairing block. Install transducers following included instructions for best performance.
The included GLS 10 sonar black box has a simple plug-and-play Garmin Marine Network connector for easy integration with compatible Garmin chartplotters.
It requires one Garmin Marine Network port with a small connector for integration with compatible systems.
If you experience difficulty during installation, contact Garmin Product Support or a professional installer.
Thru-hull transducers work with any engine type (inboard, outboard, I/O) and are suitable for both power and sailboats. There are models for every hull material.
Compatible Garmin chartplotters with the appropriate Marine Network port are required for full functionality of the LiveScope system.

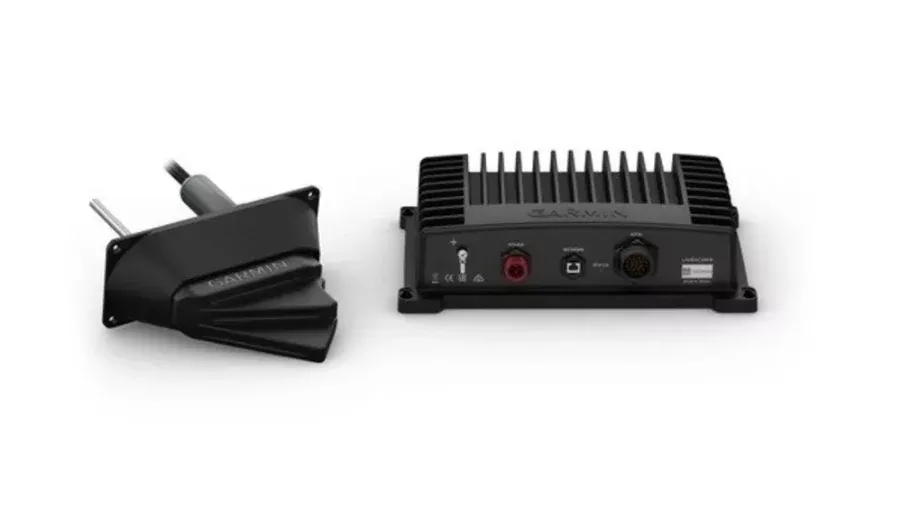

You must use the GLS 10 sonar black box with compatible LVS32 transducer; the system includes both as key components.
Available mount options include trolling motor, transom, and thru-hull. The 010-02233-00 system includes a thru-hull mount transducer.
The Attitude Heading Reference System (AHRS) stabilizes the sonar view, keeping it steady on your chartplotter even in rough conditions.
LiveScope supports Down, Forward, and Perspective scanning sonar modes for viewing details below, ahead, and from a top-down perspective. The system includes everything needed for these views.
Contact the SailRACE team — as certified marine experts we’re happy to help with product selection, installation and after-sales servicing, before and after your purchase.
