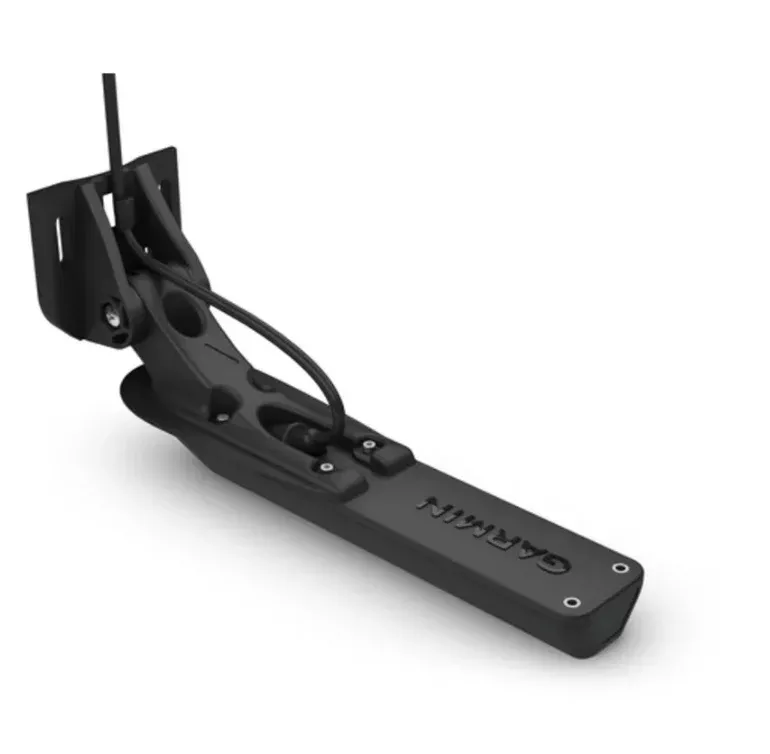

Transducer with stern mirror support for high-definition probe module system
Display the incredibly sharp images of the ClearVü and SideVü high-definition probes on your compatible plotter using the GCV™ 20 probe module. It offers three matrices, including a downward-oriented element (ClearVü of 800 kHz UHD, SideVü of 1200 kHz UHD)
High-definition ClearVü exploration
This probe system provides a bright image clarity of the structures and fish under the boat at greater depths than other high-frequency exploration probes because it offers greater power for the detection of targets through a downward-facing element.
High-definition SideVü exploration
Get incredibly clear images of the structures and fish on the sides of the boat. This makes it very easy to explore a fishing area quickly, since you will be able to see everything with surprising clarity from the first moment.
Specifications:
| Physical And Performance Characteristics | |
|---|---|
| Frequency | Ultra High-Definition ClearVü: 800 kHz (760-880 Khz)
Ultra High-Definition SideVü: 1,200 kHz (1,060-1,170 kHz) |
| Energy | 500 W |
| Beam Width | High-definition ClearVü: 0.74° X 46° High-definition SideVü: 0.44° X 55° |
| Maximum Depth | High-definition ClearVü: 60m High-definition SideVü: 125′ on each side |
| Cable Length | 6m |
| DEPTH/SPEED/TEMPERATURE | Depth and temperature |
| Number of Sideburns | 12 pines |
| Aft Mirror Angles Allowed | Stern mirror angle of 0°-70° |
| Probe Specifications And Functions | |
|---|---|
| ULTRA-HIGH Definition CLEARVÜ | 800 kHz |
| ULTRA-HIGH Definition SIDEVÜ | 1.200 kHz |
FAQs
Transom mounts are easy to install and remove, especially if a kick-up bracket is used, which can aid in maintenance.
The GT34UHD-TM transducer supports transom mount installation, which is attached to the back (transom) of a boat hull.
Mount the transducer where nothing on the vessel interferes with the transducer’s active face for the most effective signal return.
Transom mounts will not work on vessels with inboard engines or stepped hulls.
Transom mount transducers will not work on vessels with an inboard engine.
The GT34UHD-TM features a 12-pin connector for device integration.
Transom mounts are not recommended for sailboats due to excessive heeling.
Good performance can be expected at boat speeds below 30 knots (34 mph).
The UHD ClearVü system provides brilliant image clarity and is designed for greater depths than other high-frequency sonars.
It utilizes a downward-facing element for UHD ClearVü and side elements for UHD SideVü imaging.
