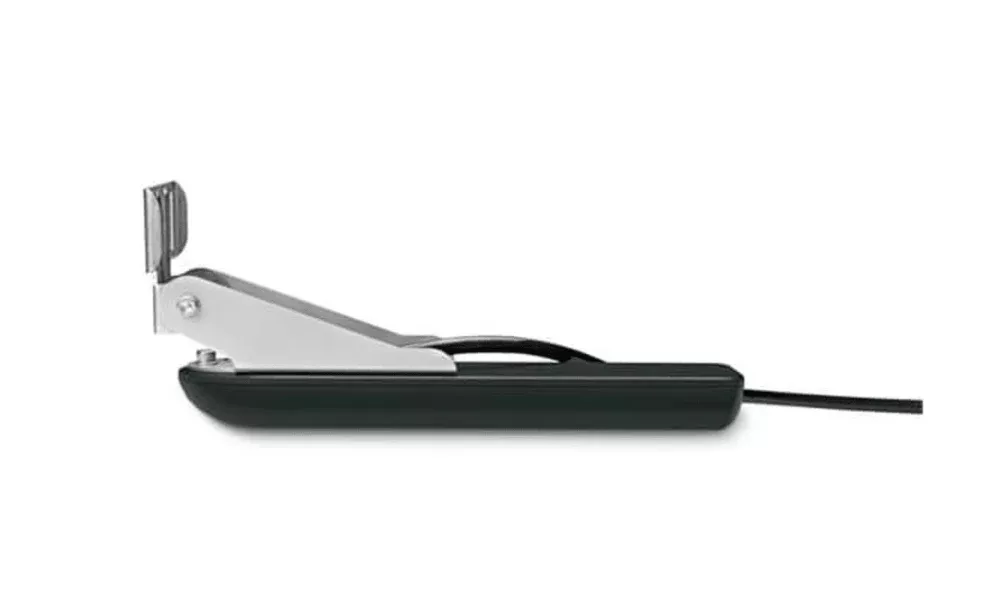

Get ultra-clear probe images of objects, structures and fish passing under your boat thanks to this 12-pin transducer.
This 20-foot transducer cable with built-in fast-response temperature sensor has a power of 500 W per element (1500 W in total), a depth of 750 feet (DownVü) and 500 feet to the left and right (SideVü); an operating frequency of 455/800 kHz (DownVü) and a stern mirror angle of 0 to 70 degrees. Link it with your GCV™ 10 black box probe.
The transducer is supplied with the installation instructions. Follow the instructions carefully to avoid damage to the boat.
Specifications:
| Physical And Performance Characteristics | |
|---|---|
| Frequency | ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| Energy | ClearVü/SideVü 500 W |
| Beam Width | ClearVü: 1.4°x53° @ 455 kHz & 0.8°x30° @ 800 kHz SideVü: 1.1°x53° @ 455 kHZ & 0.7°x30° @ 800 kHz |
| Maximum Depth | ClearVü: 750 ft.; SideVü: 500 ft. |
| Cable Legth | 20 ft. |
| Depth/ Speed / Temperature | Depth and Temperature |
| Number of sideburns | 12-pin |
| Aft Mirror angles allowed | 0°-70° degree transom |
FAQs
The GT30-TM is designed for transom mount installation, which attaches to the back (transom) of a boat hull.
If you experience difficulty during the installation, contact Garmin Product Support or seek the advice of a professional installer.
If you have difficulty during installation, it’s recommended to contact Garmin Product Support or consult a professional installer.
Install all transducers according to the included instructions for best performance.
The GT30-TM is a transom mount transducer and should be attached to the back (transom) of the boat hull for best performance.
No, it is not recommended for use on vessels with a stepped hull.
It is not recommended for sailboats due to excessive heeling.
