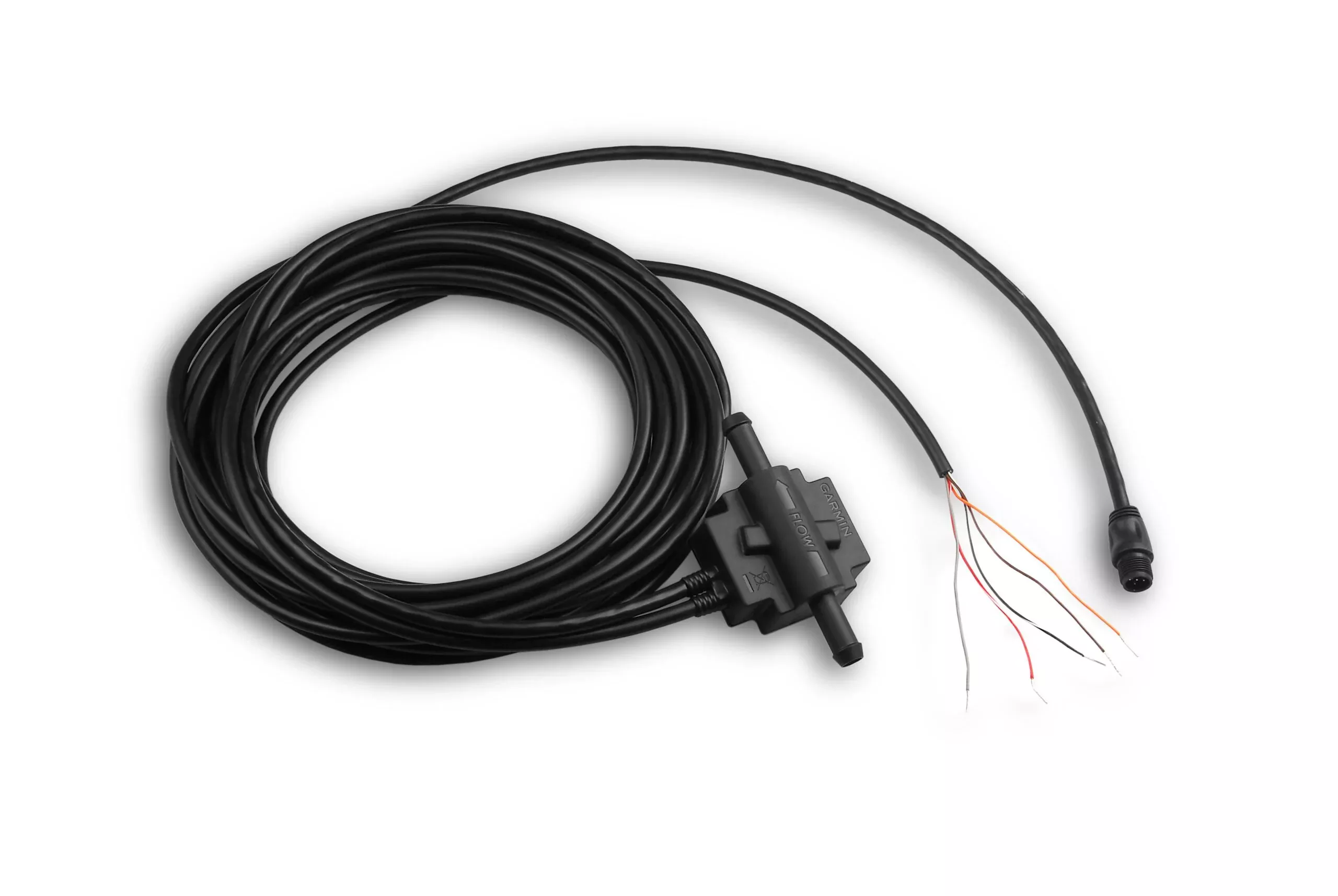

The GFS 10 sensor adds fuel control (gasoline) functions to your Garmin plotter and optimizes your boat’s fuel economy. GFS 10 detects the fuel flow and transmits the data to the multifunction displays and to the screens of Garmin’s GMI 10 instrumentation through CANet or NMEA 2000.
Unlike other fuel flow sensors, the GFS 10 will include a function that detects the fuel level when connected to an existing analog indicator or resistive fuel tank sensor. The maximum fuel flow speed of the GFS 10 is 189 liters per hour and the minimum is 7.5 liters per hour.
Features:
- Design: 3/8″ toothed accessories
- Maximum flow rate: up to 189 l/h per motor
- Minimum flow rate: 7.5 l/h
- Maximum back pressure: 0.5 PSI At 20 GPH / 1.0 PSI at 40 GPH
- Supply voltage: 10-22 V
- Fire resistant: Yes
FAQs
The case requires no user maintenance except cleaning. Use a cloth dampened with mild detergent, and avoid chemical cleaners and solvents.
The case requires no user maintenance other than cleaning. Clean the outer casing with a cloth dampened with mild detergent solution. Avoid using chemical cleaners or solvents that may damage plastic components.
The unit’s case does not require user maintenance except regular cleaning, as instructed. No other routine maintenance is specified.
This Garmin product is warranted to be free from defects in materials or workmanship for one year from the date of purchase.
Garmin declares that the product complies with Directive 1999/5/EC essential requirements and other relevant provisions.
The unit is waterproof to IEC Standard 60529 IPX7. It can withstand immersion in 1 meter of water for 30 minutes. Prolonged submersion may cause damage.
After submersion, be certain to wipe and air dry the unit before reuse to avoid potential damage.
This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center.
