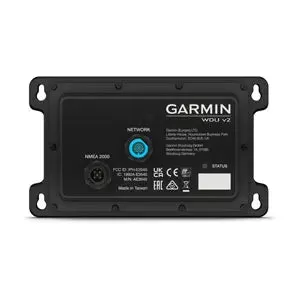

Garmin EmpirBus WDU v2

Original price was: $372.00.Current price is: $251.81.

Sale!
SKU: 010-02642-00 Category:
Share

WDU is a web server unit that distributes rich custom graphics to any HTML5-compatible device. The WDU device allows you to control and monitor any EmpirBus system through a user interface fully optimized for its purpose and compatible with our GPSMAP® multifunction touch screens for the control bridge. HTML5 pages and applications can be configured graphically without limits, and they work perfectly with the EmpiriBus software.

The WDU device, which works through an NMEA 2000® network, works at Ethernet speeds (GMN circular connector) for HTML5 distribution. It also offers optional connectivity for wireless connections through Wi-Fi® technology. This is how compatible smartphones and tablets can be used as control devices for the EmpirBus switching system.

Specifications:

Misc

Description

Dimensions (An. x Al. x Pr.) 15,5 X 9,2 X 4,7 mm (6,1″ X 3,6″ X 1,9″)
Weight 206 g (7,3 oz)
Communication NMEA 2000® Network (LEN-5)
Garmin Network
Connectivity
Wi-Fi®
Classification of the water in the box IPX7
Ambient temperature De -15 °C a 55 °C
Electric power Feeding through NMEA 2000
Energy consumption MáX./media: 195 mA a 9 voltios/165 mA a 9 voltios
Feeding voltage Power voltage: 9-32 volts of DC

Connector

NMEA 2000 Micro 5-pin M12 male
Red Garmin Small connector

FAQs

How should the product be grounded during installation?

Before applying power, ensure the product is correctly grounded as instructed to avoid safety hazards or operational issues.

Should power cables or other supplied cables be cut or extended?

Cables should not be cut or extended unless it is specifically detailed in the installation manual.

Does the device have user-serviceable parts inside?

No, there are no user serviceable components. All maintenance and repair must be referred to authorized EmpirBus dealers.

Is it permitted to open the device or remove its casing?

Do not open the unit or remove its casing as this will compromise its seal and void the manufacturer’s warranty.

Can the unit be installed near strong sources of electromagnetic interference?

Where possible, separate the product and the source of interference by a greater distance to minimize effects on performance.

What should be done before modifying or updating the installed equipment?

Any modification should be risk assessed, validated at commissioning, and added to the conformity assessment to ensure system integrity.

How should power supply protection be implemented?

The power source should be protected with an appropriately rated fuse or automatic circuit breaker for safety.

Where can users find software updates and handbooks for the product?

The latest software releases and handbooks are available for download from the EmpirBus website.

Should the device be powered from the engine start battery?

No, the product should be powered from a separate battery, not the engine start battery, to prevent erratic behavior or data loss.
