DEX7 Pigtail Harness (6″ Deutsch Style Connector)
Color-Coded, Keyed Connector for DEX7 Multimeter

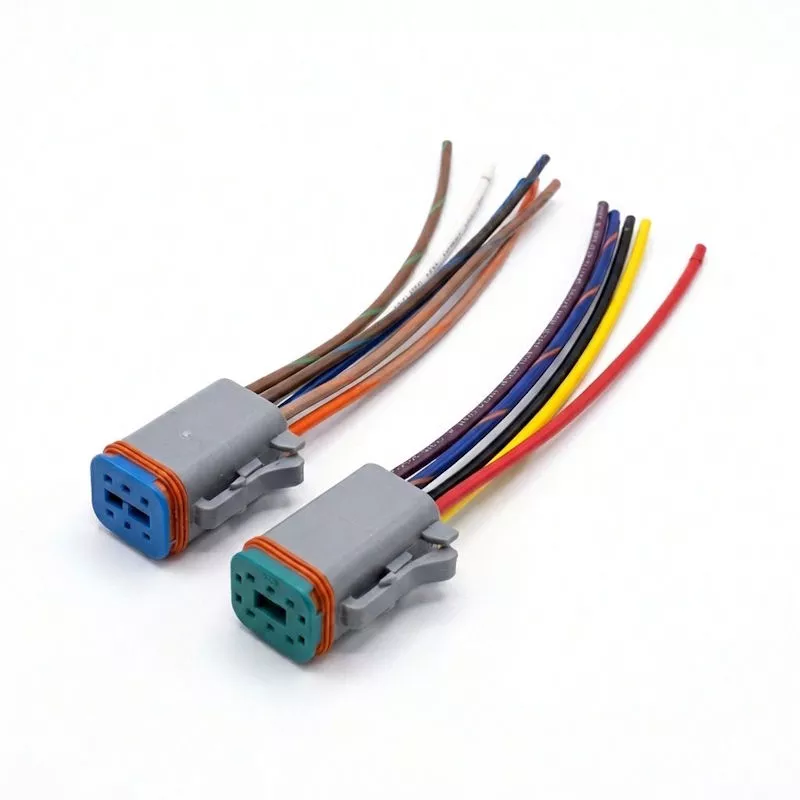

These 6″ pigtail harnesses plug directly into the back of the DEX7 Marine Multimeter, making installation simple and eliminating the need for Deutsch crimp tools.
Each harness includes a genuine keyed connectors with color-coded leads for easy identification and clean wiring.
Important: Two Connector Types (A and B)
The DEX7 uses two different keyed 6-pin connectors on the back of the unit:
- Pigtail A
- Pigtail B
These connectors are physically keyed differently and are not interchangeable. You will need both an A and a B harness for a complete installation.
This keying prevents incorrect installation and ensures proper wiring alignment.
Why Use the Pigtail Kit?
- No special Deutsch crimp tools required
- Allows simple butt-splice connection to your boat wiring
- Color-coded wires for easier identification
- Clean, professional installation
- Secure, vibration-resistant connection
Instead of purchasing Deutsch connectors and crimp tooling, this harness allows you to quickly connect to the DEX7 using standard butt connectors.
Specifications
- Length: 6″
- Connector Type: 6-pin Deutsch (keyed)
- Pre-installed terminals
- Color-coded marine-grade leads
- Compatible with DEX7 Multimeter
Ordering Options
This is a variable product:
- Pigtail A (Keyed Connector A)
- Pigtail B (Keyed Connector B)
For a full DEX7 installation, you will need one of each.
Want to Build Your Own Harness?
If you prefer to build your own DEX7 connector harness, you can purchase the individual Deutsch components below:
- AT06-6S 6-Way Plug Connector
- Wedgelock for Connector A
- Wedgelock for Connector B
- Size 16 Socket Terminals (16–20 AWG)
- Blank Seal Plugs (for unused cavities)
- Size 16 Crimp Tool
The A and B connectors use the same main plug body, but require different wedgelocks due to the keyed design.
