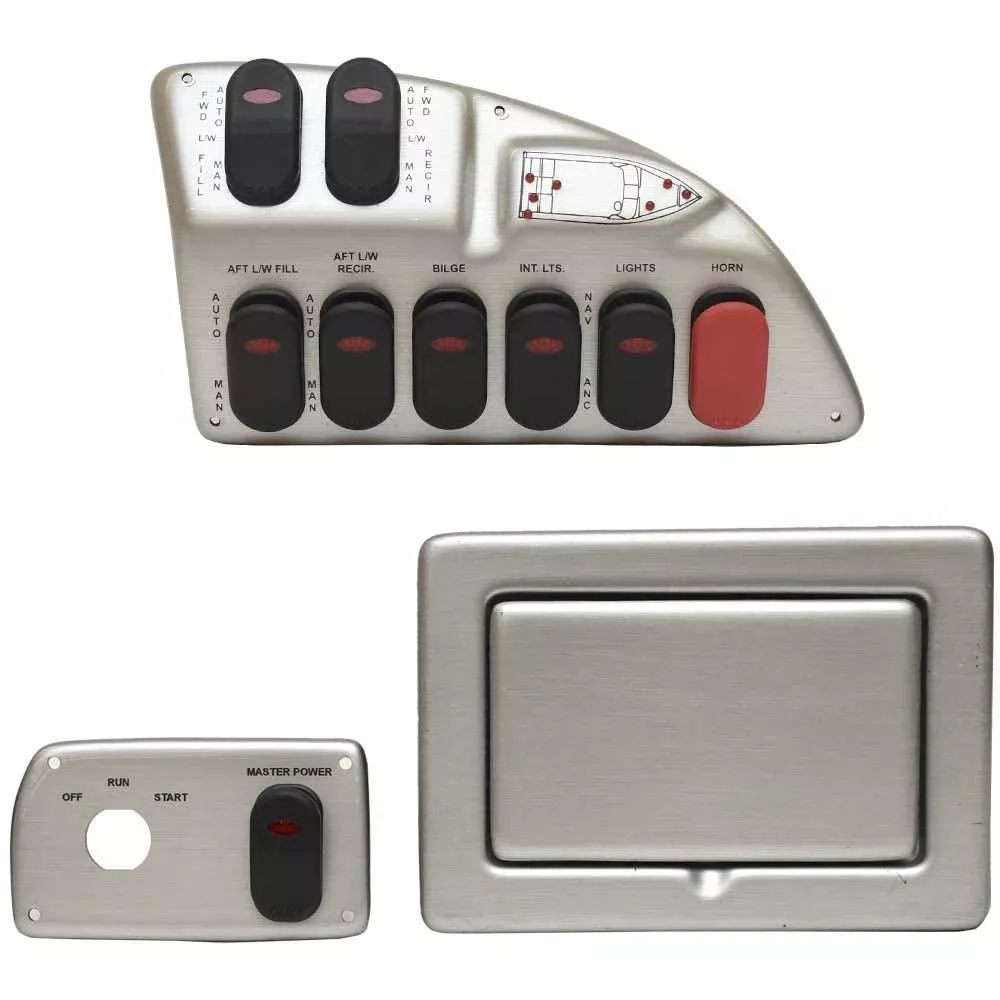

Boat part number 1107344 is a new 3-piece switch and fuse panel kit, boat manufacturer and part number unavailable. Part manufacturer and part number unavailable.Kit includes the following:
- (1) Fuse Box Panel
- (1) Switch Panel
- (1) Ignition and Main Power Panel
Fuse Box PanelThis 14-position Fuse Access panel is constructed out of gray brushed plastic, and measures approximately 7 1/2″ H x 5 1/4″ L. Features a hook and loop mounted cover. Requires a 3 3/4″ L x 6″ H x 2 1/4″ D cutout. It has the following connections:
- (1) 16-Pin Female
- (1) 4-Pin Male
- (1) Insulated Butt Connector
- (1) Female Spade
Switch PanelThis switch panel is constructed from gray brushed plastic, and measures approximately 9 1/4″ L x 5″ H overall. Includes lighted indicator diagram. Mounts with (4) 3/16″ Dia. holes set along the perimeter.This panel features the following pre-installed switches:
- (1) ON/OFF/ON FWD L/W FILL AUTO/ MAN
- (1) ON/OFF/ON FWD RECIRC AUTO/ MAN
- (1) ON/OFF/ON AFT L/W FILL AUTO/MAN
- (1) ON/OFF/ON AFT L/W RECIRC AUTO/MAN
- (1) ON/OFF BILGE
- (1) ON/OFF INT LTS
- (1) ON/OFF/ON NAV and ANC LIGHTS
- (1) OFF/MOMENTARY ON HORN
It has the following connections:
- (1) 12-Pin Female
- (1) 10-Pin Female
Ignition and Master Power PanelThis panel is constructed out of grey brushed plastic, measures approximately 4 7/8″ L x 2 3/4″ H overall. Hosts a 7/8″ x 1″ cutout prelabelled for an ignition switch. Hosts (1) ON/OFF MASTER POWER switch. Mounts with (4) 3/16″ Dia. holes set along the perimeter.All switches rated for 21A at 14VDC. Fuse box and ignition panel are connected.Note: The fuse box has a minor crack on the back. See photos.Specifications:
- Material: Plastic
- Color: Grey Brushed
- Finish: Glossy
