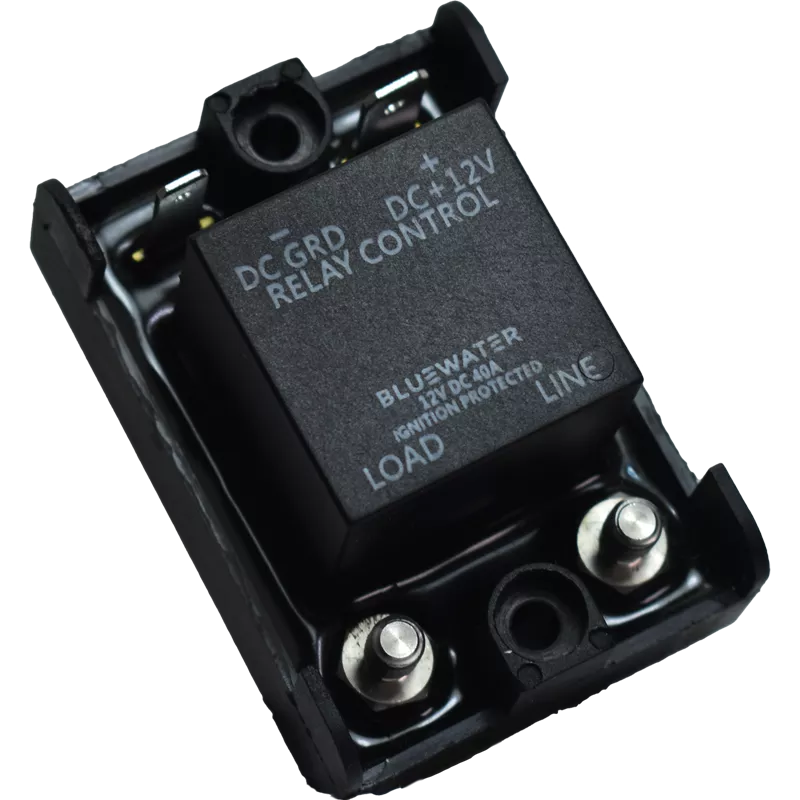

This is a really nice 40A surface mount, sealed & potted relay from Bluewater. Relays allow you to switch high current loads with a switch rated for a smaller amount.
Sealed, waterproof, and ignition protected – this relay is built for the harsh saltwater environment found on boats.
We love the 10/32 studs, great for cable retention on the high current terminals. (use this ring terminal to attach).
The signal wires pull <100mA, so even our smallest switch will work great. The signal terminals are standard 0.250” and 0.187″ Quick Connects.
This relay has only the Normally Open (NO) contacts. If you need a Normally Closed (NC) contact, please use this relay.
Comes with nuts for the screw terminals. 40A max current. Terminal labels are clearly stamped on the body.
Dimensions: 2-1/4″ x 1-9/16″
Here is the wiring diagram for this Bluewater relay:
