Blue Sea Battery Charger Mounting Adapter
Intuitive Battery Monitoring

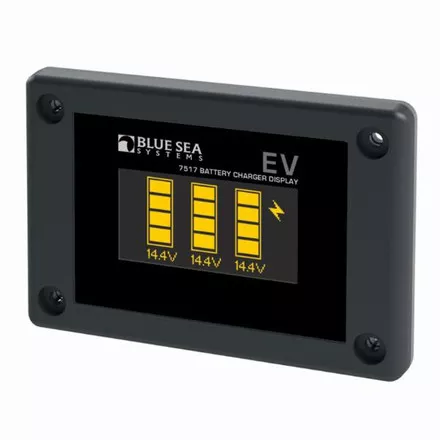

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.
- Drop in replacement for traditional rectangular displays
- Automatically detects 1-3 battery banks
- AC charge indication verifies that power is connected and the battery charger is charging
- Plain language fault indication relays if there is a fault with the battery charger
- Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
- Displays voltage bar graphs even when AC power is not present
- Optional standby mode shuts off screen after 4 hours of inactivity
- Automatic ON based on motion with integrated knock sensor
| Part Number | Accuracy | Battery Inputs | Display Size | Display Type | Input Voltage Range | Maximum Current Draw | Minimum Current Draw | Weight |
|---|---|---|---|---|---|---|---|---|
| BSS-7517 | ± 1% at 36 Volts DC | 3 with common reference | 55mm x 28mm | Yellow OLED | 6-36V DC | 50mA | <1mA in Standby Mode | 0.3kg |
