Home » Shop » Electrical Panels » Blue Sea 8478 AC 10 Position

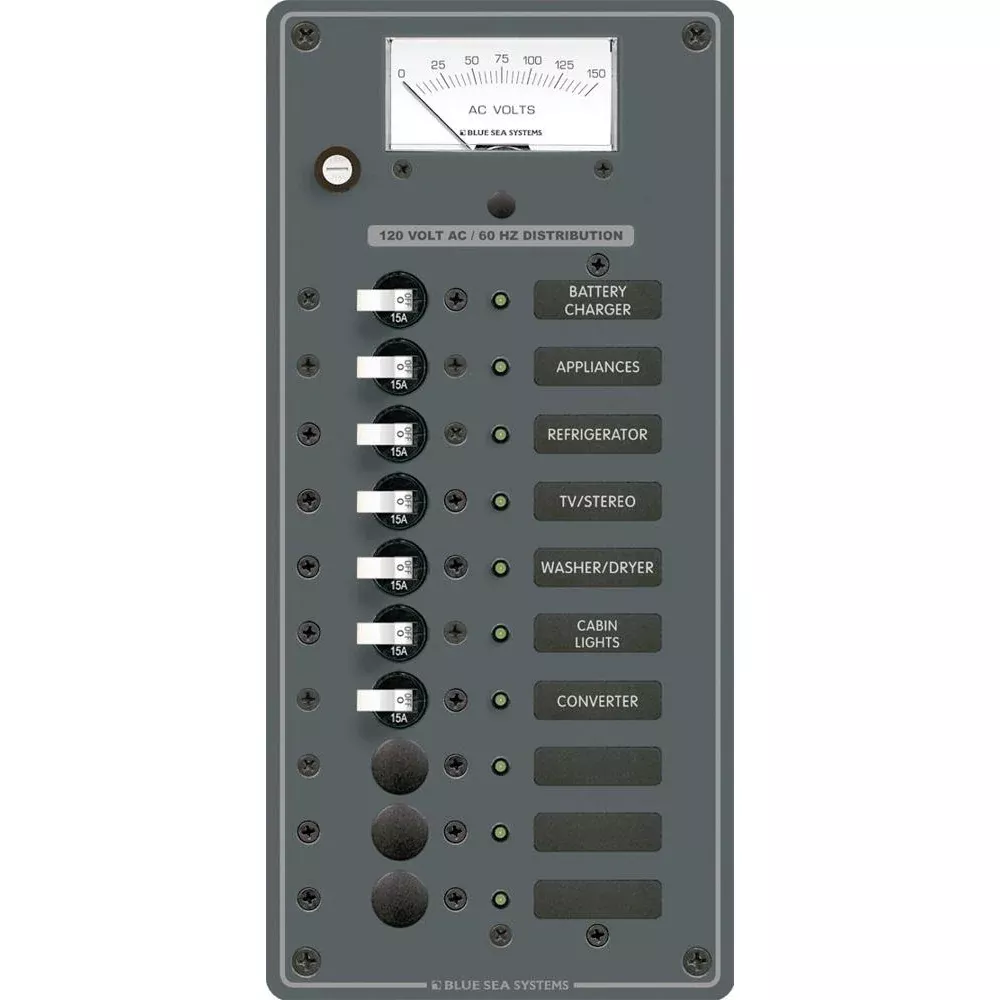

Blue Sea 8478 AC 10 Position

Original price was: $443.99.Current price is: $305.46.

Sale!
SKU: BLU-8478 Category:
Share

AC 10 Position

  • (7) 15A Single Pole Circuit Breakers

  • (1) 9353 AC Analog Voltmeter
    • A-Series Circuit Breaker Panels
    • All hot, neutral, and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels – No kit required
    • “ON” indicating LEDs installed in all circuit positions
    • Maximum panel amperage – 100 Amperes
    • MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8″ aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual labels available

    WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Voltage: 120v
    • AC/DC: AC
    • Max Breaker Quantity: 10
    • Box Dimensions: 5″H x 9″W x 12″L WT: 3.05 lbs
    • UPC: 632085084783

    Quick Guide (pdf)
    Owner’s Manual (pdf)

    SKU:BLU-8478
