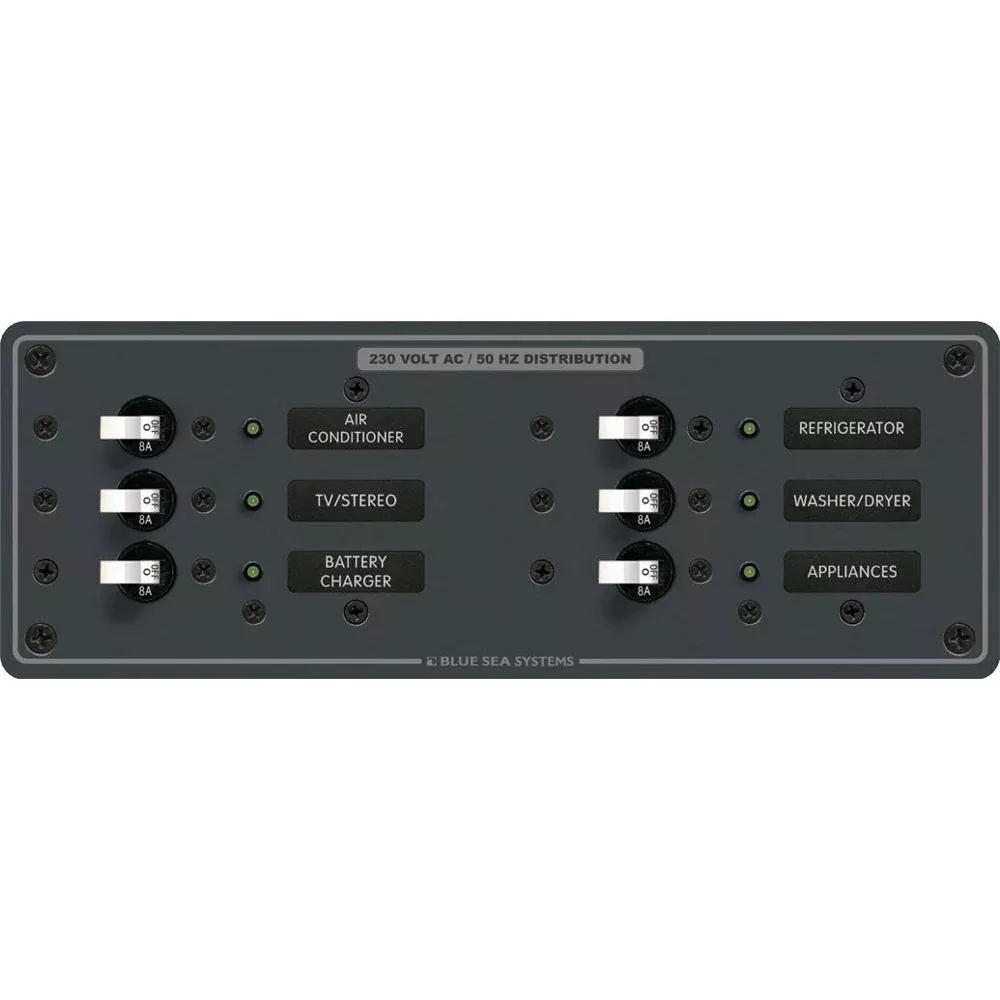

Blue Sea 8197 AC 6 Position

8197 AC 6 Position

Features:

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit posistions
• Maximum panel amperage – 100 Amperes
• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included

Specifications:

• Positions: 6
• Nominal Voltage: 230v AC
• Maximum Amperage: 100A
• Height: 3.75″
• Width: 10.5″

Included:

• (6) 7299 A-Series White Toggle Circuit Breaker – Single Pole 8A
• (1) 8031 Basic AC Panel Label Set – 30 Labels
• (6) 8134 LED – 230v AC Green

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 6
• Voltage: 230v
• Box Dimensions: 7″H x 7″W x 7″L WT: 5.6 lbs
• UPC: 632085081973

Owner’s Manual (pdf)

SKU:BLU-8197
