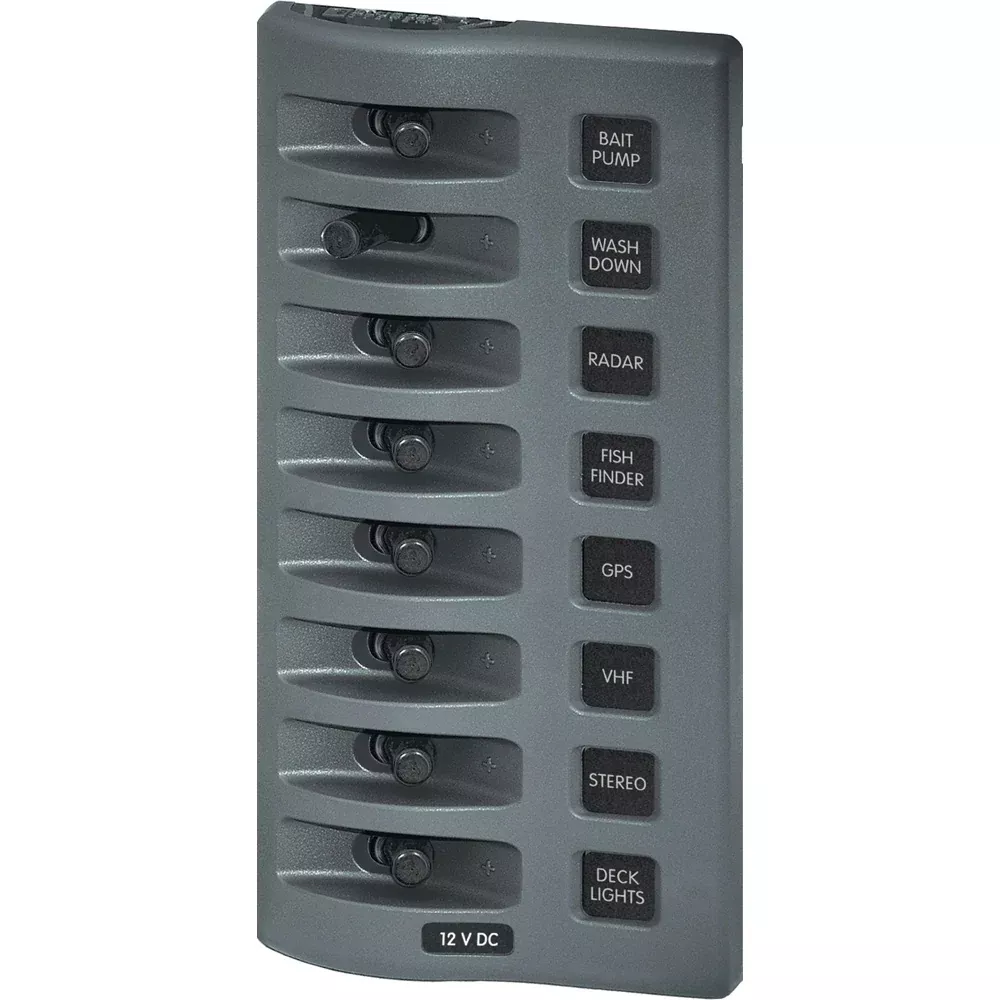

Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel – 8 Position

WeatherDeck® 12V DC Waterproof Switch Panel – 8 Position

• Integrated switch guards reduce the risk of accidental switching
• Panels can be mounted in four different orientations
• Panel front rated IP67 when properly mounted with watertight mounting gasket
• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof:Waterproof
Positions:8
Nominal Voltage:12V DC/24V DC
Circuit Protection:None
Maximum Amperage:15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material:Reinforced Polycarbonate
Height:7.70″(195.58 mm)
Width: 3.88″(98.55 mm)
Depth:2.50″(63.5 mm)
Weight:1.55lb (0.7 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Max Breaker Quantity: 8
• Waterproof: Waterproof
• Voltage: 12/24v
• Box Dimensions: 4″H x 6″W x 10″L WT: 1.2 lbs
• UPC: 632085043094

Owner’s Manual (pdf)

SKU:BLU-4309
