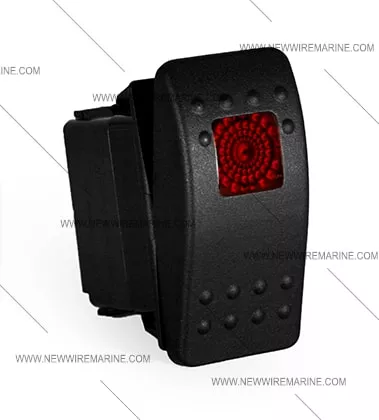

Blank (ON)-OFF, Momentary Rocker Switch
Genuine Carling Contura II rocker switch with no label. This rocker switch is a Single Pole Single Throw (ON)-OFF switch, where (ON) means momentary. Would be used for something like a horn switch… “spring-loaded“
This product is the ENTIRE SWITCH combo and includes both the switch body and the cover.
This switch does not have an indicator light. It has a lens in the actuator to match the others, but no light in the switch body.
This rocker switch will replace any Carling V-series or Contura style rocker switch. That includes Contura style switches sold by Carling, Sierra, Blue Sea Systems, Sea-Dog, etc. It uses an industry-standard 1.45″ x 0.83″ mounting hole.
Rocker Switch Quick Specs:
- Voltage Rating: 12Vdc
- Current Rating: 20A
- Circuit: SPST
- Position: (ON)-OFF
- Water Protection: IP68 (waterproof to>1m submersion)
- Terminal Count:2
- Terminal Style: 0.250″ Quick Connect (spades)
- Body P/N: V2D1-S00B
- Contact Life: 150,000 cycles
- Lamp Life: 10,000 hours
What does this mean in real life? This is an exceptionally high-quality rocker switch from the industry-leading manufacturer, Carling Technologies. This switch will last many years in the harsh marine environment.
Download the full spec sheet here
How Our Switches Are Better:
- Genuine Carling switches – We’ll never try and pass off cheap Chinese knock-offs like some of our competitors. You’ve probably seen other sites list a switch as “fits carling”… that’s a red flag. All our switches and covers are the genuine article. And like all cheaply made counterfeits, you CAN tell the difference.
- Support – We know this product inside and out and are happy to help our customers. Need help wiring up one of our products, just call: (843) 297-8348
- Guarantee – While Carling does not offer a warranty, we’re so confidant in the quality, if your switch breaks or the ink wears off within 2 years, you can return it for a free replacement!
- Durable UV stabilized ink – Have trouble with labels wearing off on your switches? That’s because cheap non-UV stabilized ink was used… you won’t find that here.
- Hard cover style – We never use the “soft touch” style that will melt into a sticky mess after a few months in the sun.
Wiring Info & Wiring Diagram
This Blank rocker switch has 2 terminals on the back:
- 12V input – terminal 2
- 12V output – terminal 3
Accessories:
- Mounting Panels: End, Middle, Single
- Switch Gasket
- Quick Connect Terminals
