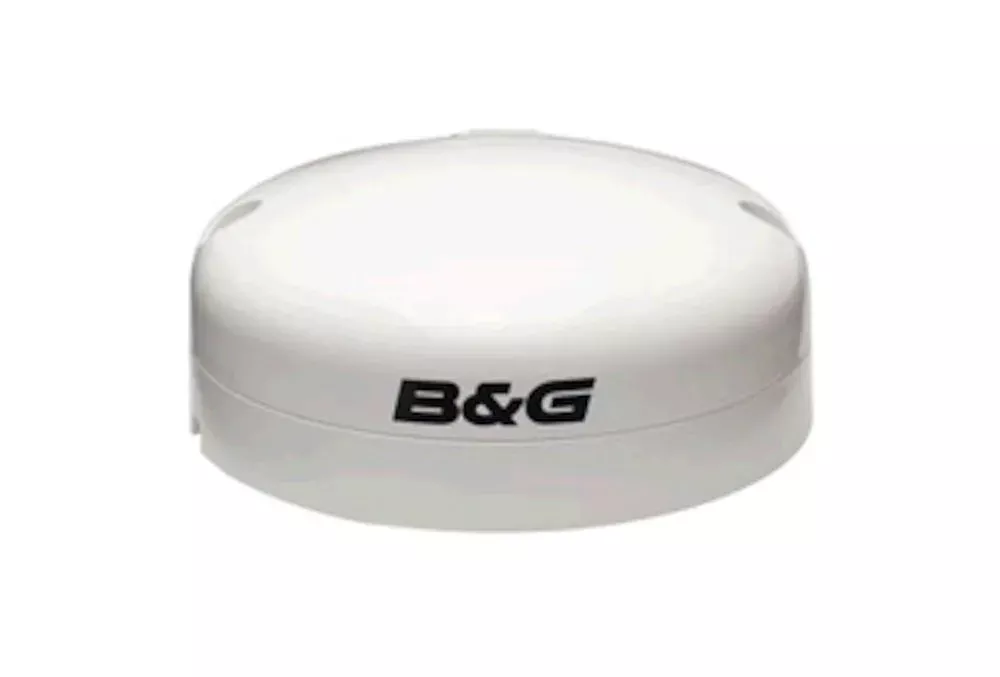

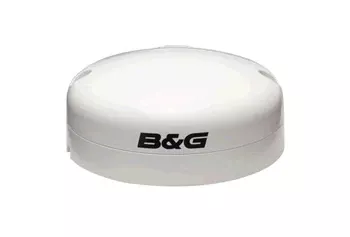

The B&G ZG100 GPS antenna provides precise and dependable position data making it the perfect partner for B&G chartplotters and instrument systems.
The highly accurate 10 Hz GPS gives precise and smooth update of position information during acceleration and manoeuvring, rapid signal acquisition and consistent position accuracy augmented by secondary satellite systems like WAAS, EGNOS, MSAS and Galileo. It is also QZSS-ready.
The integrated compass delivers accurate heading information for instruments, chart stabilisation for Head Up mode and Radar overlays. It also provides Heel and Trim data for sailing.
Please note this product is not suitable for use with MARPA or B&G Pilot systems; this requires a rate compass such as the Precision-9, RC42 or Halcyon Gyro-Stabilised Compass.
Details:
- Highly accurate position
- 10Hz update rate
- Sail Specific COG/SOG filtering for optimum performance
- GPS/Galileo support
- Augmented with WAAS, EGNOS and more
- Integrated heading sensor
- Heel & Trim sensors
- Compact, waterproof (IP67) design
- NMEA 2000®
Especifications:
Approvals
| Compliance |
CE under RED 2014/53/EU Directive |
Connectivity
| NMEA2000 Pgns |
126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257 |
| NMEA 2000 |
1x NMEA 2000 Micro-C Port, 2 LEN |
Electrical
| Power Consumption, max. |
2 W |
| Power Consumption, typical |
<2 W |
| Supply Voltage |
9 V DC – 18 V DC |
| Humidity |
40ºC, 93% RH, operating |
Environment
| Operating Temperature Range |
-25°C To 60°C (-13°F to 140°F) |
| Storage Temperature Range |
-40 to + 85ºc (-40 to + 185ºf) |
| Waterproof rating |
IPX7 |
GPS
| Correction |
DGPS, WAAS, EGNOS, GLOANASS, MSAS, Galileo |
| GPS Receiver Channels |
32 Channels |
| Position Accuracy |
3m (9.8 ft) |
| Time to First Fix |
3s (Cold Start 50s) |
| Update rate |
Up to 10 Hz (1,5,10) |
Heading Sensor
| Accuracy |
+/- 3º Heading, +/- 1º Roll/Pitch @ 30º |
| Data Available |
Magnetic, Heading, Rate of Turn, Heel Angle, Trim Angle |
| Data Protocol |
NMEA 2000 |
| Type |
Solid state |
MFD
| Compass Safe Distance – Metric, imperial |
0.5 m (20″) |
| Dimensions (Diameter x H) |
91 X 38 mm (3.54″ X 1.50″) |
Physical
| Mounting Type |
Flush mount / Standard Pole Mount |
| Weight |
0.14 kg (0.3 lbs) |
