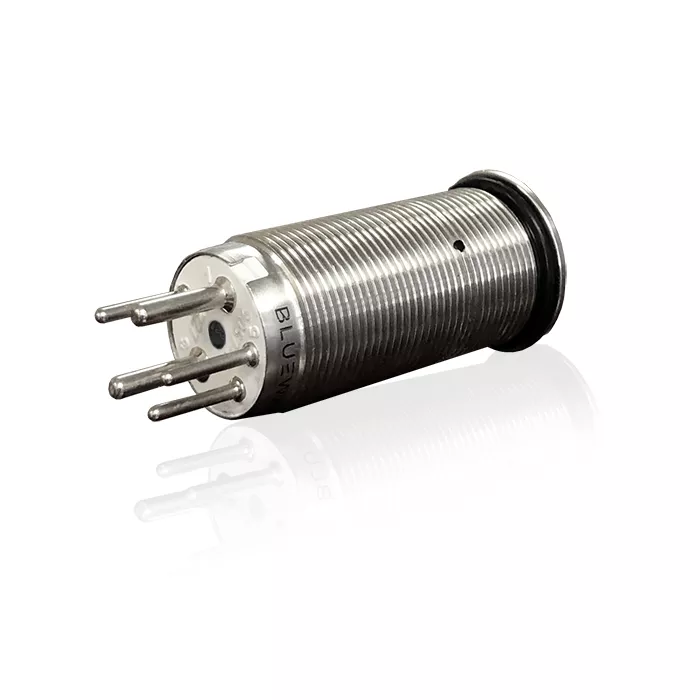

19mm Bluewater Dimmer Pushbutton Body
Switch function:
Our Bluewater 9057-3116 is a Dimmer switch.
Bluewater P/N 9057-3116 Features:
This little switch is just packed full of innovations, including:
- Bluewater P/N 9057-3116
- 15A rated solid state transistor driven design
- IP69K Waterproof
- 12V and 24V DC rating in one
- Solid milled 316 Stainless Steel body
- Removable back connector (sold separately)
- Weep holes for drainage
- Interchangeable actuators
- Blue backlighting w/ red indication
How does this switch work?
-
Purpose: This switch is designed to control the brightness of connected lighting. In many cases, it is wired to manage switch backlighting or LED strip lighting on a panel.
-
Adjusting Brightness: To change the light intensity, press and hold the switch. The lighting will gradually dim. If you continue holding, the lights will eventually turn off, after which the dimmer will automatically begin increasing the brightness again. Release the switch once the desired light level is reached.
Bluewater pushbuttons have pushed the limits on panel style and design. The laser etched inserts allow a truly customizable solution to your dash panel customization needs.
This body is sold without an actuator or plug. If you’d like a complete pushbutton switch, check out our combos here:
- Laser Etched 19mm Combos
- Stainless Steel 19mm Combos
- Connectors sold separately
